Bushings & Plain Bearings
Bronze, sintered, PTFE-lined and polymer sleeve bearings.
Also searched as: oilite bushingssleeve bearingsbronze bushingsflanged bushingsdry bearings
-

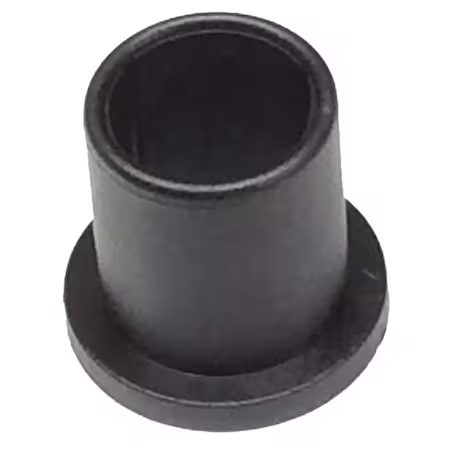

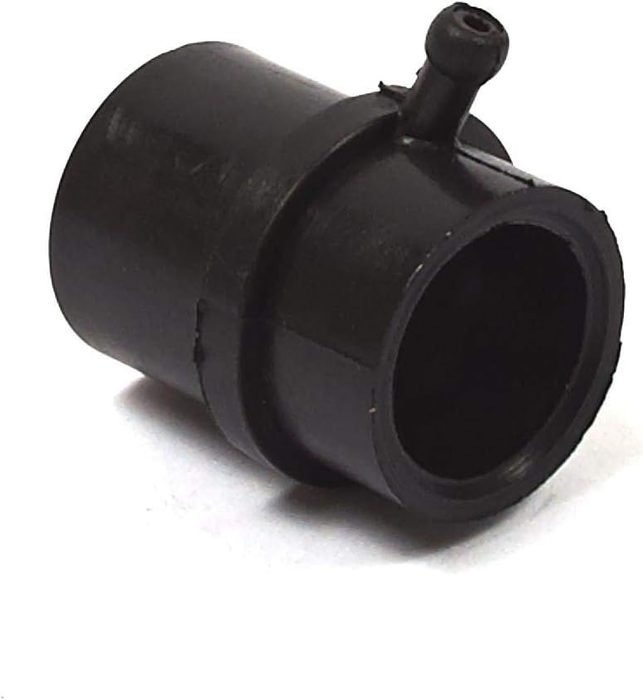

Flanged Bushing
Flange OD: 0.4375 inchFlange Width: 0.0620 inchHeight: 0.190 inchID: 0.1719 inchOD: 0.3138 inch
-
Bronze Flanged Bushing
Inside Diameter: 1"Length: 3/4"Outside Diameter: 1 1/4"
-
Bronze Bushing (Flanged)
Inner Diameter: 5/8 inchLength: 1 inchOuter Diameter: 7/8 inch
from $11.38Zoro $11.38 -

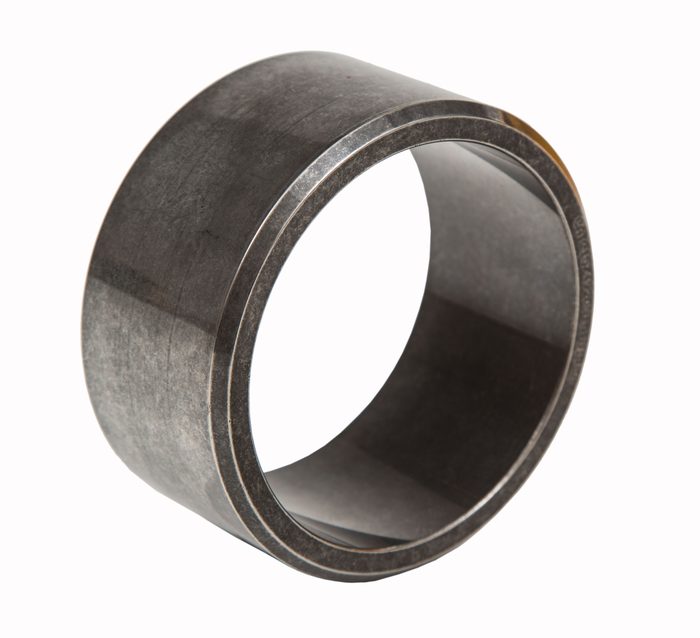

Bushing 3/8" ID x 1/2" OD x 1/4" L
Inside Diameter: 3/8 inchOutside Diameter: 1/2 inchOverall Length: 1/4 inch
-
Flange Oilite Bushing
Inner Diameter: 5/8 inOutside Diameter: 3/4 in
-
Flanged Bronze Bushing 1/2" ID x 5/8" OD x 3/4" L
Inside Diameter: 1/2"Length: 3/4"Outside Diameter: 5/8"
-
-
-
from $34.25Zoro $34.25 -
Flanged Bushing 3/4" ID x 7/8" OD
Inside Diameter: 3/4 inchOutside Diameter: 7/8 inch
-
Flanged Bushing 3/4" ID x 7/8" OD
Inside Diameter: 3/4"Outside Diameter: 7/8"
-
Flanged Bushing 5/8" ID x 3/4" OD x 1/2" L
Inside Diameter: 5/8"Length: 1/2"Outside Diameter: 3/4"
-
Flanged Oilite Bushing 1/2" ID x 5/8" OD
Inner Diameter: 1/2 inOutside Diameter: 5/8 in
-

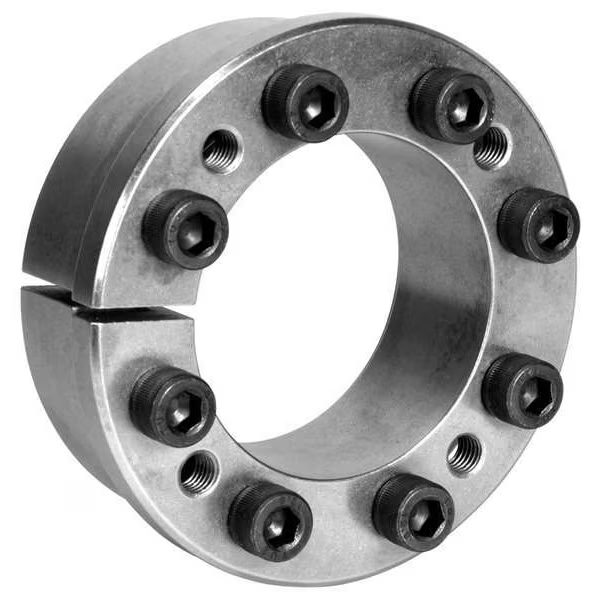

Keyless Bushing
Bore Diameter: 1.375 inFlange Type: FlangedOutside Diameter: 2.359375 inOverall Width: 1.358 in
from $50.89Zoro $50.89 -
Oilite Bronze Sleeve Bearing, 5/16 in Bore
Bore: 5/16 inchMaximum Temperature: 300 DegreesMinimum Temperature: -35 DegreesOutside Diameter: 3/8 inchOverall Length: 1
-
Oilite Bushing
Inner Diameter: 1 inOutside Diameter: 1-1/4 in
-
-
Oilite Bushing 1" ID x 1-1/4" OD
Inside Diameter: 1 inchOutside Diameter: 1-1/4 inch
-

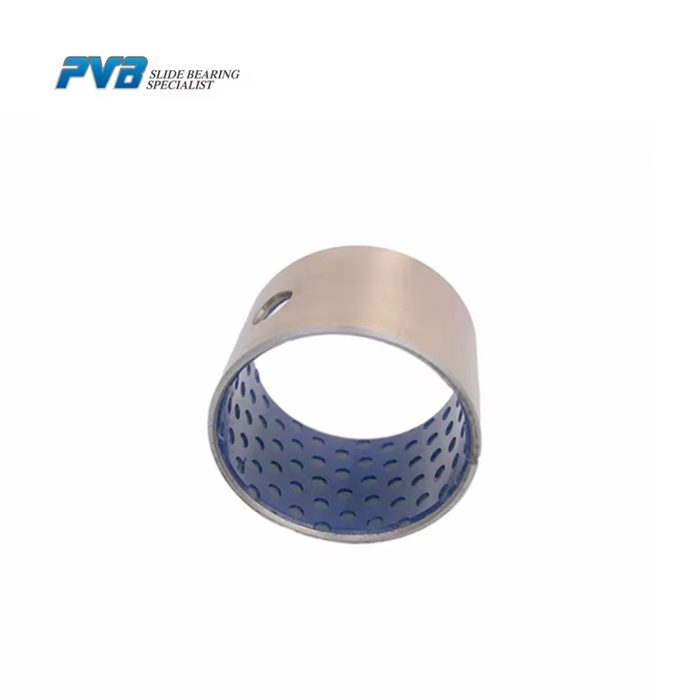

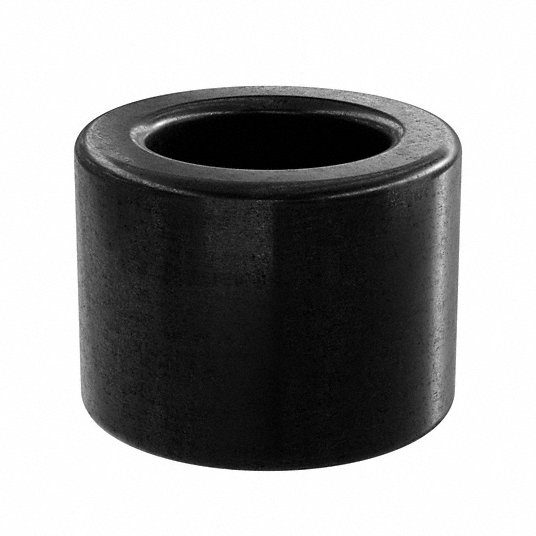

Oilite Sleeve Bearing
Bore: 5/16 inMaximum Temperature: 500 Degrees FOverall Length: 3/8 in
-
Oilite Sleeve Bearing
Inside Diameter: 30 mmLength: 40 mmMax. Pv: 1,141 lb/sq in-fpmOutside Diameter: 40 mm
-
Oilite Sleeve Bearing
Bore: 3/8 inLength: 1/2 inMaximum Temperature: 300 Degrees FOutside Diameter: 3/8 inOverall Length: 3/4 in
-
Plain Bushing Bearing, Closed, ID 0.375 In
Inner Diameter: 0.375 inTemperature Range: -400 to 550 Degrees F
-
Plain Bushing Bearing, Closed, ID 0.750 In
Inner Diameter: 0.750 inOuter Diameter: 1.187 inStatic Load Capacity: 8451.621 N
-
Plain Bushing Bearing, Closed, ID 1.500 In
Dimension C: 3 inInner Diameter: 1.500 in
-
Plain Bushing Bearing, Open, ID 0.250 In
Inner Diameter: 0.25 inOutside Diameter: 0.5 inOverall Length: 0.75 in
-
Spherical Plain Bearing
Inner Diameter: 35 mmOuter Diameter: 55 mm
-
Spherical Plain Bearing
Inner Diameter: 4 inOuter Diameter: 6.25 in
-
Spherical Plain Bearing, Ang. Contact GAC 30F
Ball Diameter: 50 mmBore Diameter: 30 mmOuter Ring Width: 15 mmOutside Diameter: 55 mm
-
Taper-Lock Bushing 3525 2.3/8
Keyway Size: 16 mm x 8 mm
-

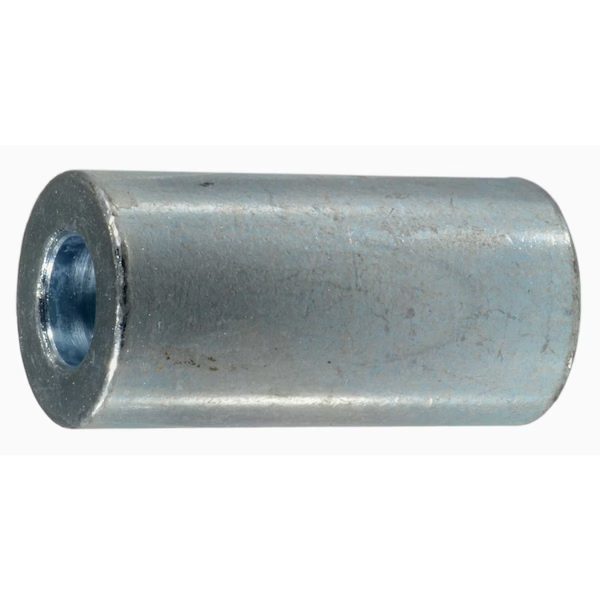

Zinc Plated Steel Machine Bushings 1/2" x 1" x 2"
Outside Length: 1/2 inchThickness: OILITE Sleeve BearingTop Width: 5/16 inch
About bushings & plain bearings
Bushings and plain bearings facilitate relative motion between two components, typically a shaft and a housing, by providing a low-friction, wear-resistant interface. Unlike rolling-element bearings, plain bearings operate on a sliding principle, relying on a lubricant film or the inherent lubricity of the bearing material. Common types include sleeve bearings, flanged bearings, and thrust washers. Sleeve bearings are cylindrical, designed for radial loads, while flanged bearings incorporate a collar to handle both radial and axial loads. Thrust washers are flat, circular components used exclusively for axial loads. Key selection parameters include the bore diameter, outer diameter, length, and flange dimensions (for flanged types), often specified in inches or millimeters. Performance characteristics such as PV (pressure-velocity) rating, maximum static and dynamic load capacities, and operating temperature range are critical. Materials frequently encountered are bronze alloys (e.g., SAE 660, oil-impregnated sintered bronze), polymer compounds (e.g., PTFE, acetal, UHMW-PE), and composite materials with PTFE liners. Surface finishes and lubrication grooves may be incorporated to optimize performance and extend service life.
How to choose
title: Choosing the Right Bushing or Plain Bearing
steps: What type of motion and load? (Radial for sleeve, axial for thrust washer, combined for flanged)
What are the operating conditions? (PV rating, temperature, presence of contaminants, lubrication requirements)
What are the dimensional constraints? (Bore, OD, length, flange dimensions)
What material properties are critical? (Corrosion resistance, wear resistance, electrical conductivity, self-lubricating properties)
