Bushings & Plain Bearings
Bronze, sintered, PTFE-lined and polymer sleeve bearings.
Also searched as: oilite bushingssleeve bearingsbronze bushingsflanged bushingsdry bearings
-
-
-
-
Bearing
Inside Diameter: 14 mmOutside Diameter: 26 mmThickness: 1.45 mm
-

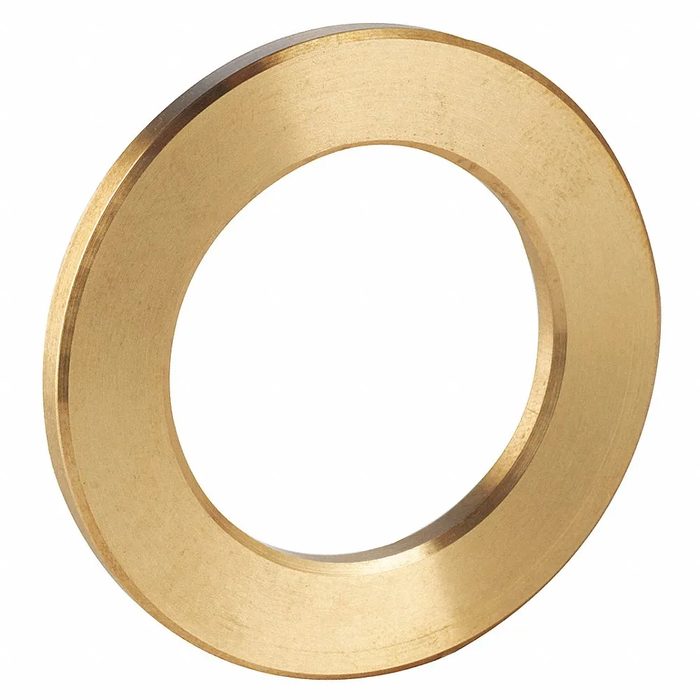

Bronze Thrust Bearing Washer
ID: 1.0000 inOD: 2.0000 inThickness: 0.1250 in
-

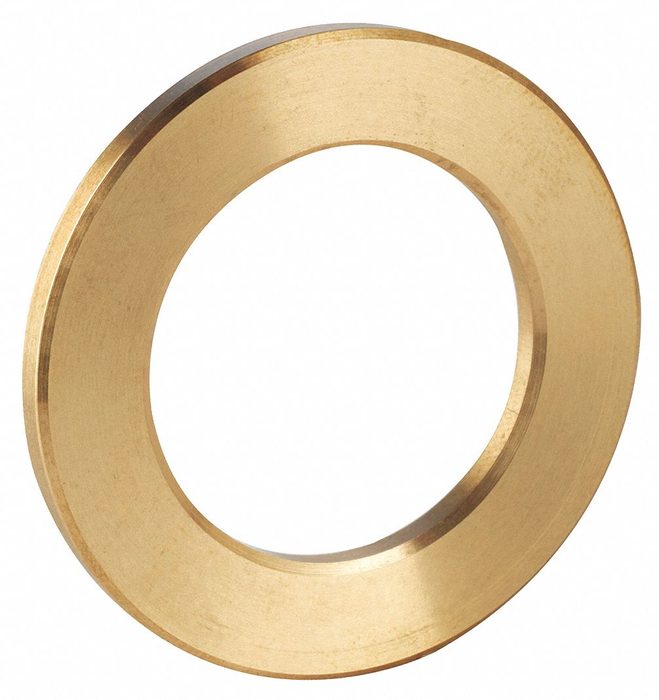

Bronze Thrust Bearing Washer
ID: 1.0000 inOD: 2.0000 inThickness: 0.1250 in
from $4.48Motion Industries $4.48 -
-
-

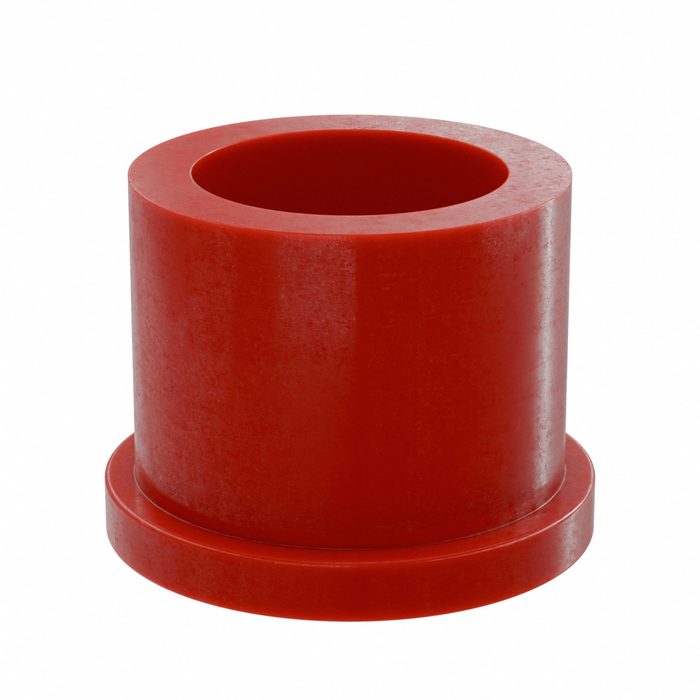

Cored Bar
Bore Diameter: 3 inOutside Diameter: 5 inOverall Length: 6-1/2 in
from $587.68Motion Industries $587.68 -
-

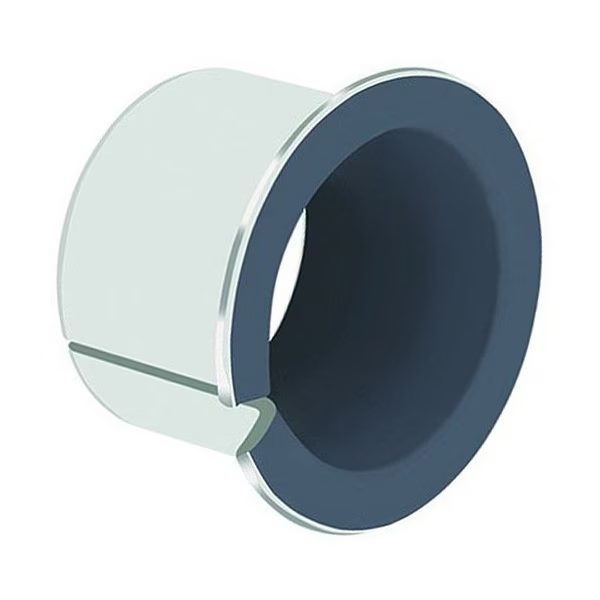

Flanged Bushing
Groove Type: Plain Interior
-
-
-

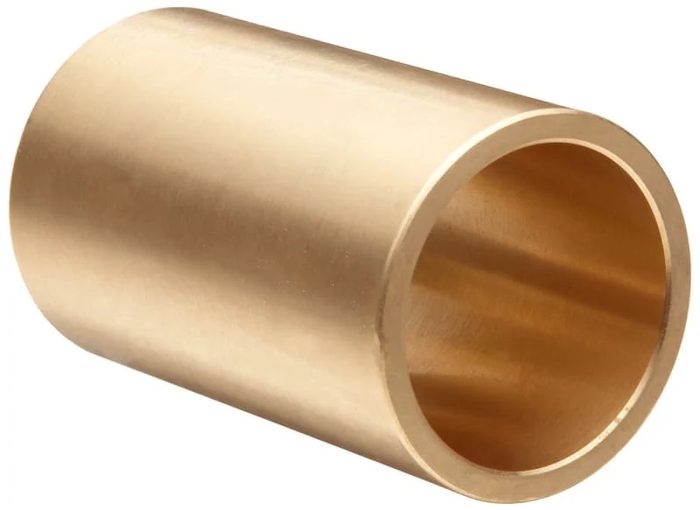

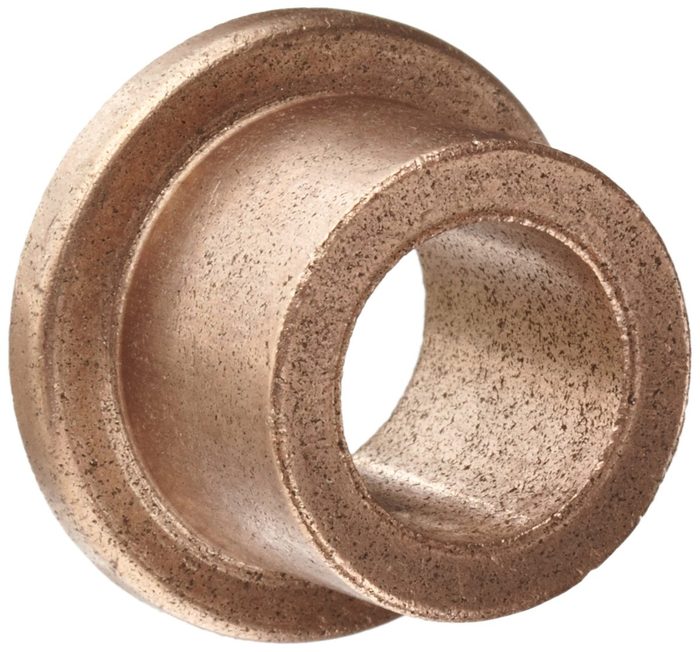

Plain Sleeve Bearing
Bore Diameter: 0.5625 inOutside Diameter: 0.8125 in
-

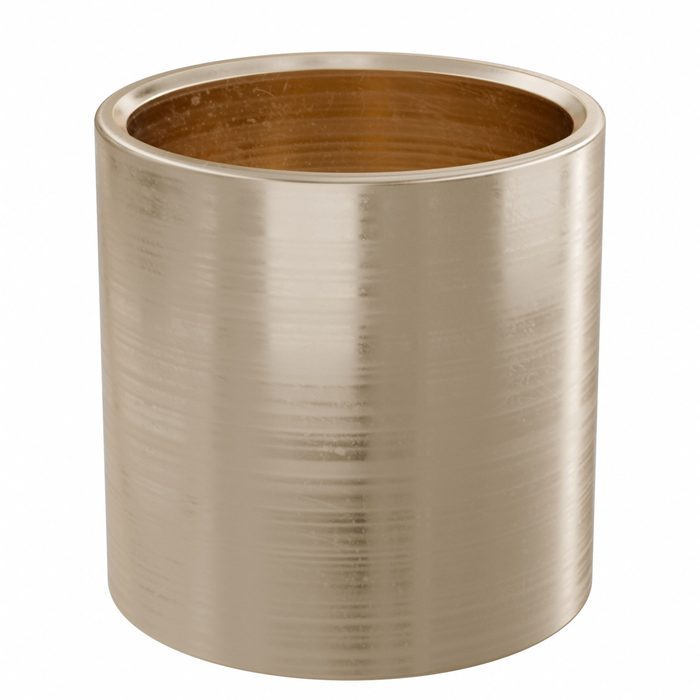

Plain Sleeve Bushing
ID: 20 mmLength: 15 mmOD: 25 mm
-

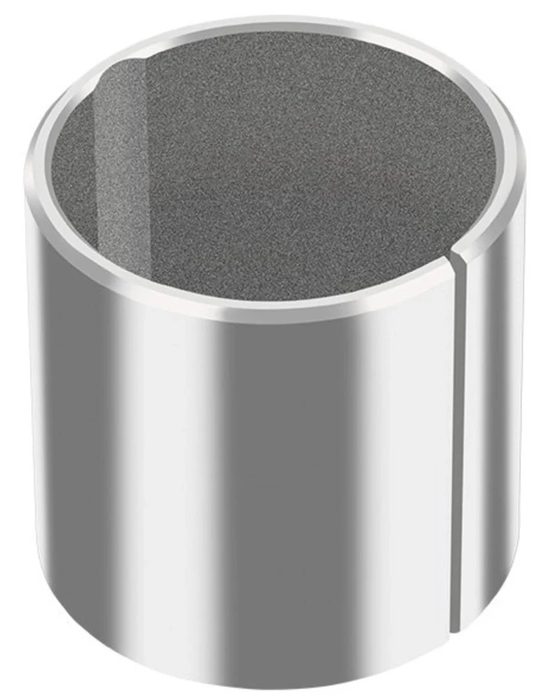

Plain Sleeve Bushing
Groove Type: Graphite-Filled Grooves
-
-
-
from $6.28Motion Industries $6.28 -
Solid Bar Stock
OD: 8 inOverall Length: 13 in
from $4,871.00Motion Industries $4,871.00
About bushings & plain bearings
Bushings and plain bearings facilitate relative motion between two components, typically a shaft and a housing, by providing a low-friction, wear-resistant interface. Unlike rolling-element bearings, plain bearings operate on a sliding principle, relying on a lubricant film or the inherent lubricity of the bearing material. Common types include sleeve bearings, flanged bearings, and thrust washers. Sleeve bearings are cylindrical, designed for radial loads, while flanged bearings incorporate a collar to handle both radial and axial loads. Thrust washers are flat, circular components used exclusively for axial loads. Key selection parameters include the bore diameter, outer diameter, length, and flange dimensions (for flanged types), often specified in inches or millimeters. Performance characteristics such as PV (pressure-velocity) rating, maximum static and dynamic load capacities, and operating temperature range are critical. Materials frequently encountered are bronze alloys (e.g., SAE 660, oil-impregnated sintered bronze), polymer compounds (e.g., PTFE, acetal, UHMW-PE), and composite materials with PTFE liners. Surface finishes and lubrication grooves may be incorporated to optimize performance and extend service life.
How to choose
title: Choosing the Right Bushing or Plain Bearing
steps: What type of motion and load? (Radial for sleeve, axial for thrust washer, combined for flanged)
What are the operating conditions? (PV rating, temperature, presence of contaminants, lubrication requirements)
What are the dimensional constraints? (Bore, OD, length, flange dimensions)
What material properties are critical? (Corrosion resistance, wear resistance, electrical conductivity, self-lubricating properties)
