Linear Rails & Guides

About linear rails & guides

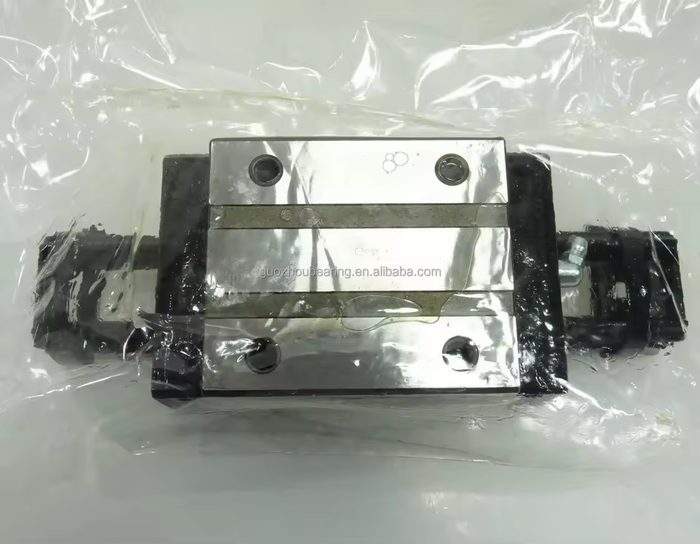

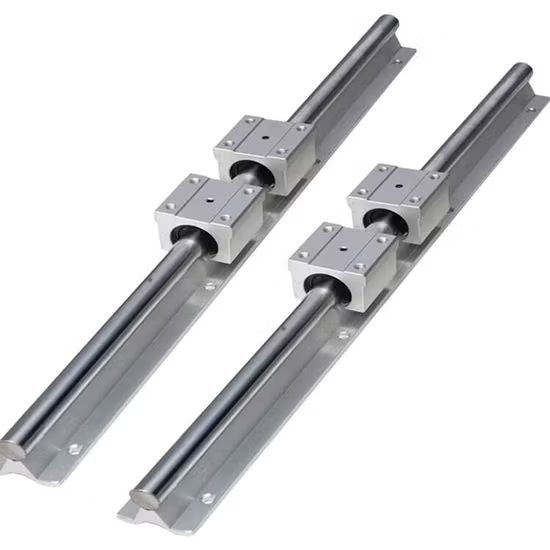

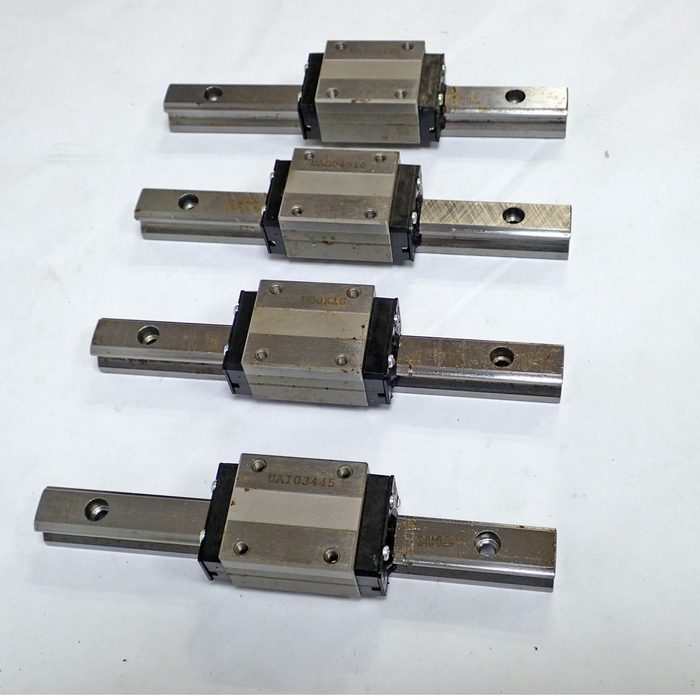

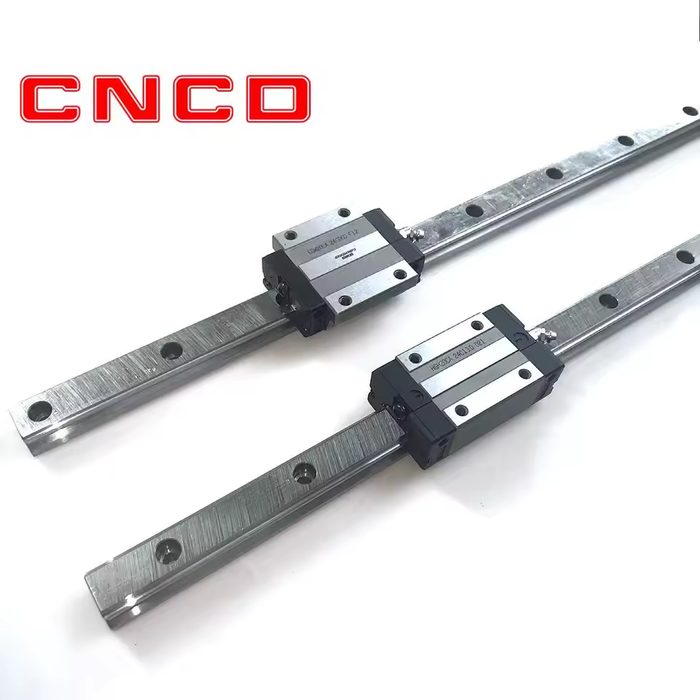

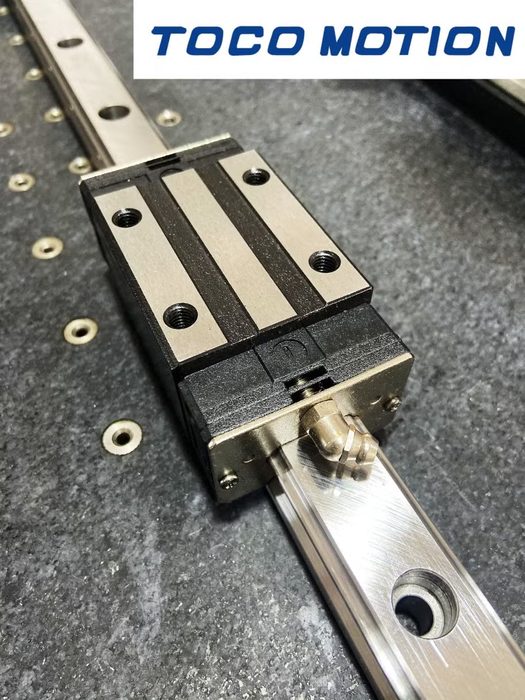

Linear rails and guides provide constrained linear motion for machine axes. The primary types include profile rail, round rail, dovetail slides, and cam-roller guideways. Profile rail systems, often designated HGR or MGN series, consist of a hardened steel rail with precision-ground raceways and a recirculating ball or roller bearing block. Round rail guides utilize hardened and ground cylindrical shafts with open or closed linear bearings. Dovetail slides employ mating angular surfaces for precise, high-rigidity motion, while cam-roller guides use rollers running in V-grooves or on flat surfaces, often for high-speed or contaminated environments. Key selection parameters include rail width, height, length, and mounting hole patterns (e.g., M4, M6). Performance ratings such as dynamic load capacity (C), static load capacity (C0), and moment ratings (Mx, My, Mz) are critical. Common materials are carbon steel, stainless steel, and aluminum, with surface treatments like black oxide or chrome plating available for corrosion resistance or improved wear characteristics. Precision grades (e.g., P, H, N) define running accuracy and parallelism.
