Linear Rails & Guides

Linear Rails & Guides

Profile rail, round rail, dovetail and cam-roller guideways.

Also searched as: linear guidehgr railmgn railprofile raillinear bearing rail

43 parts Best match Lowest price Name Most suppliers

About linear rails & guides

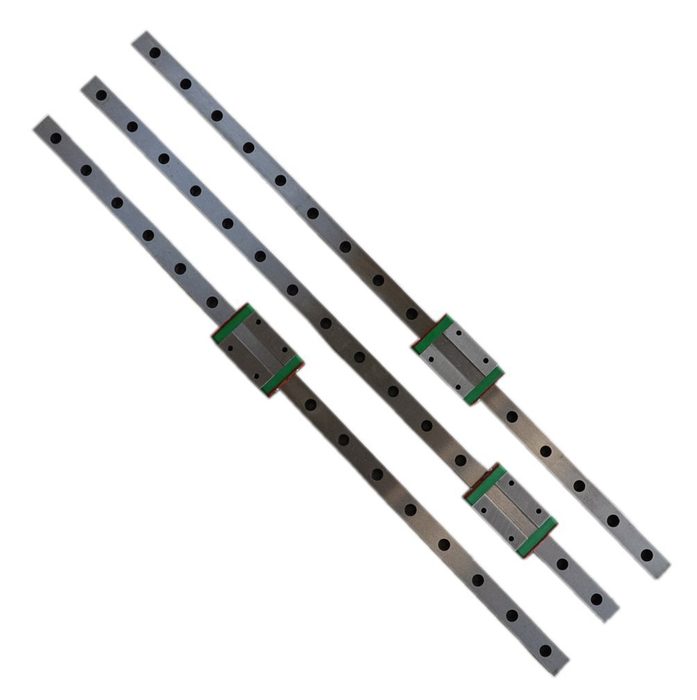

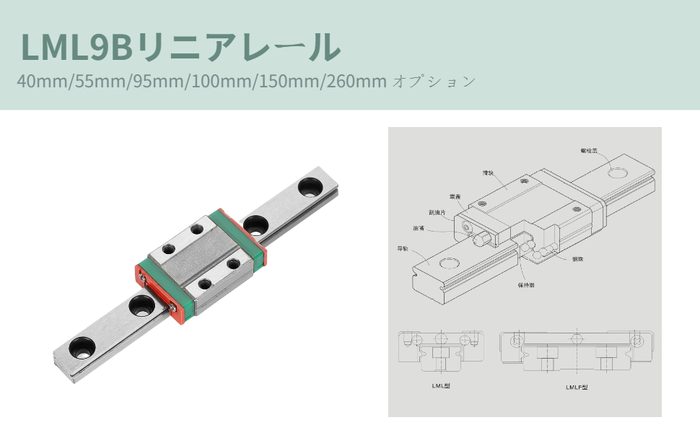

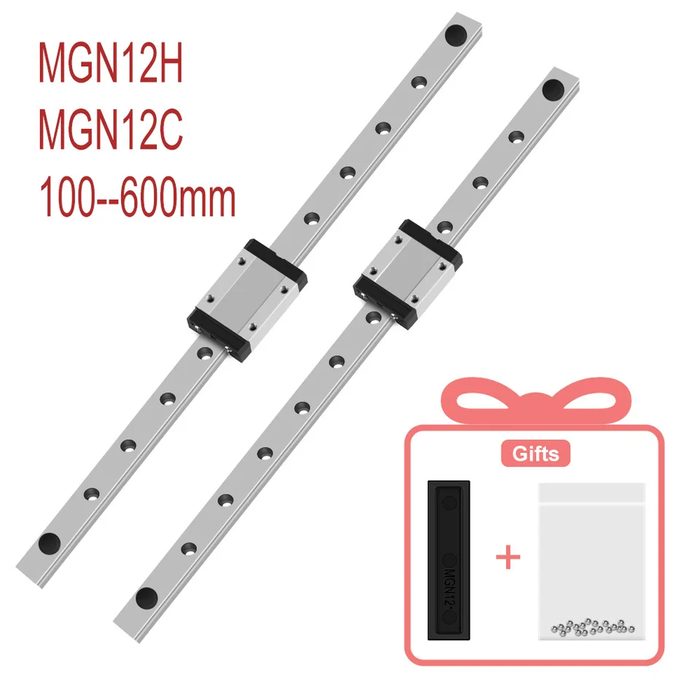

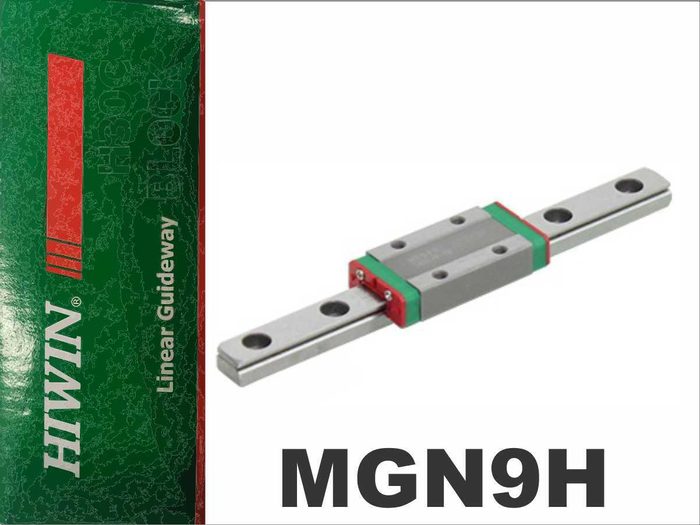

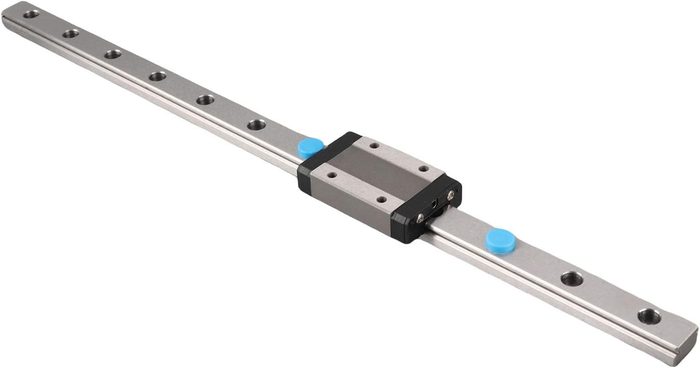

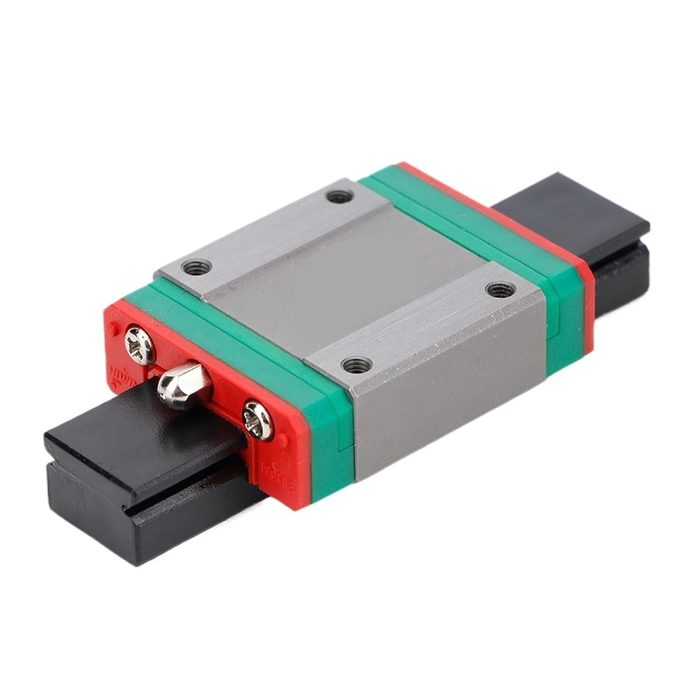

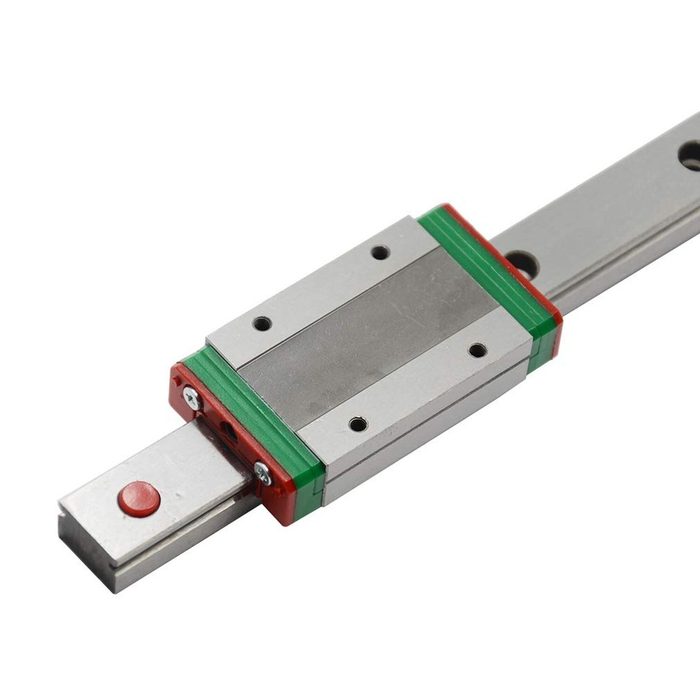

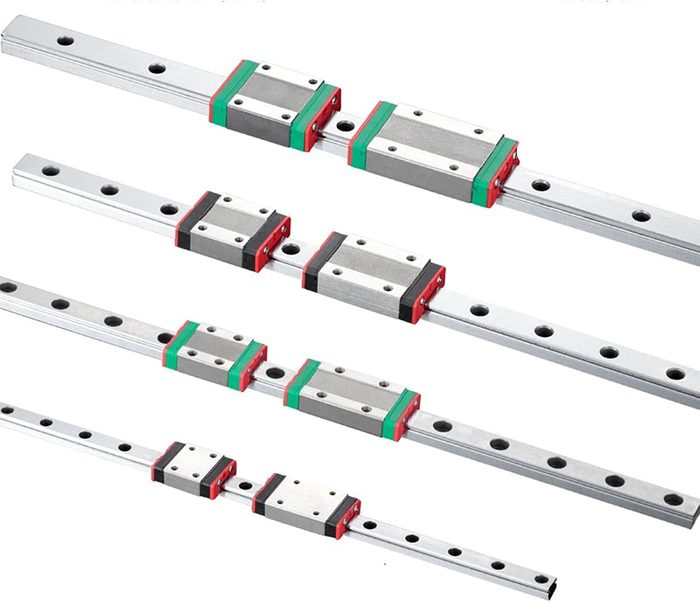

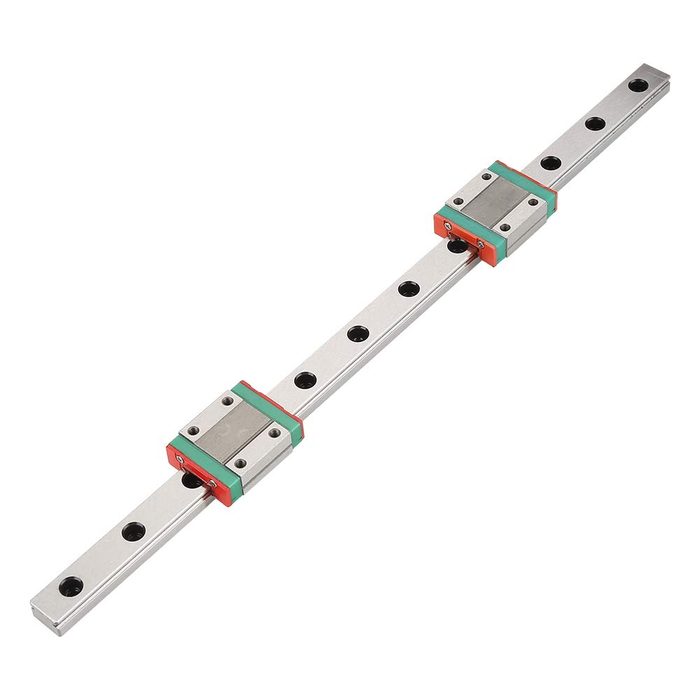

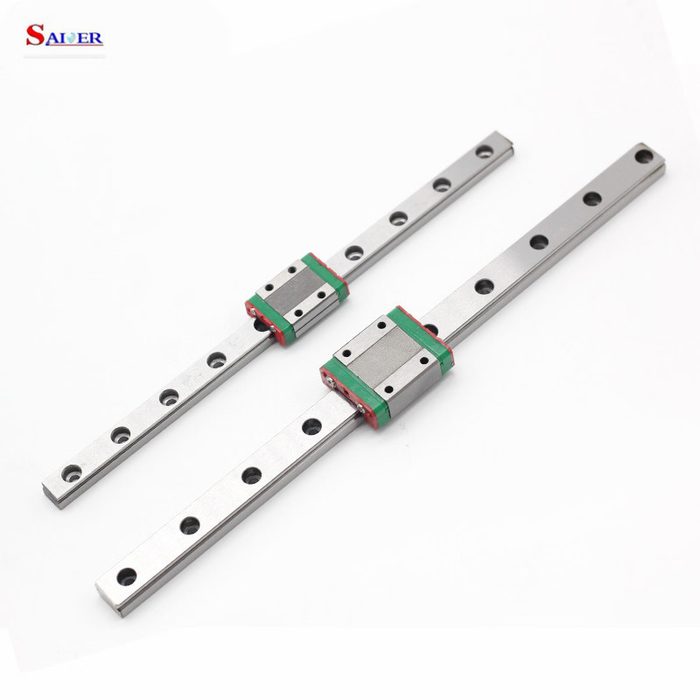

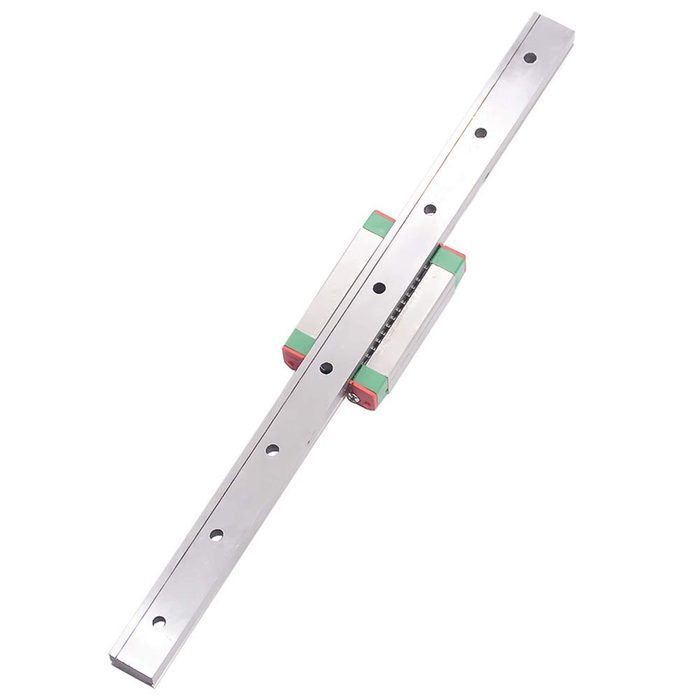

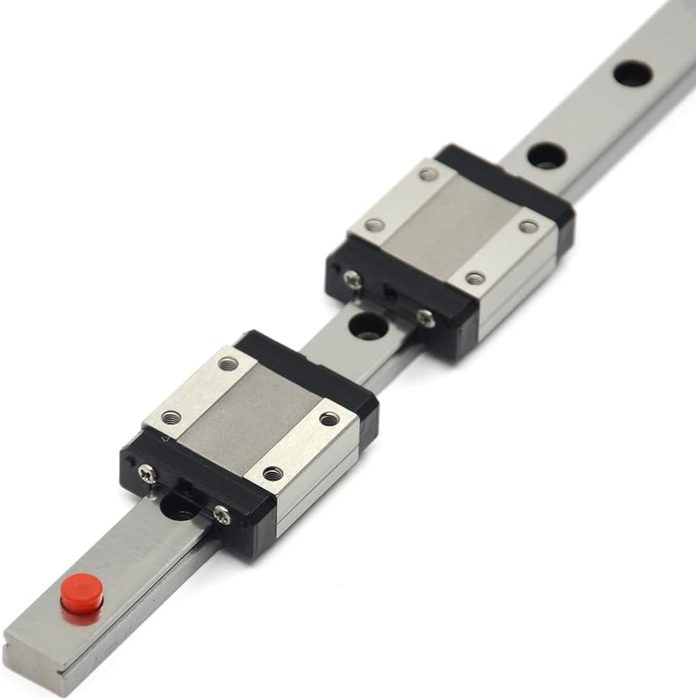

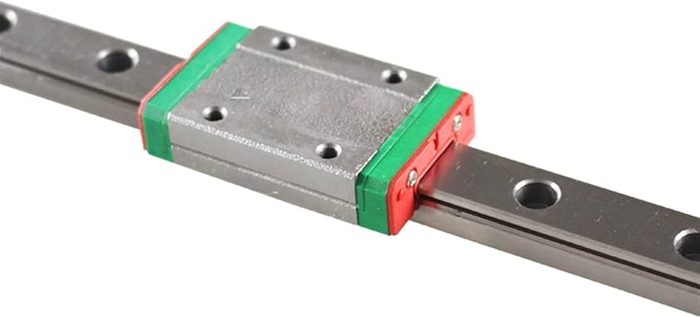

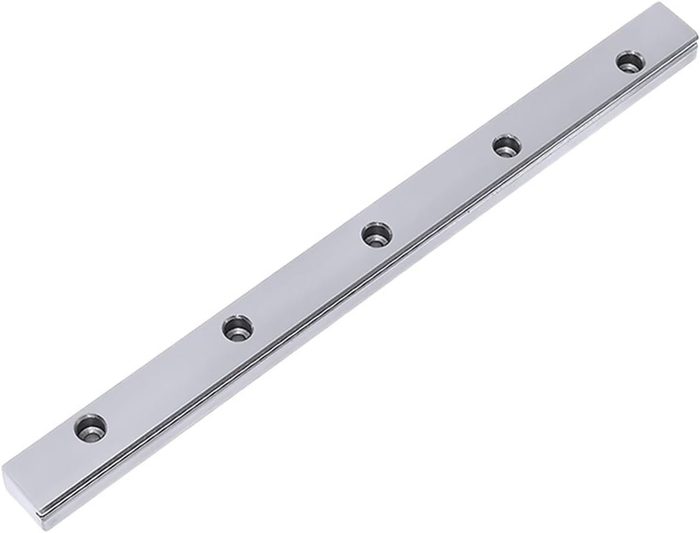

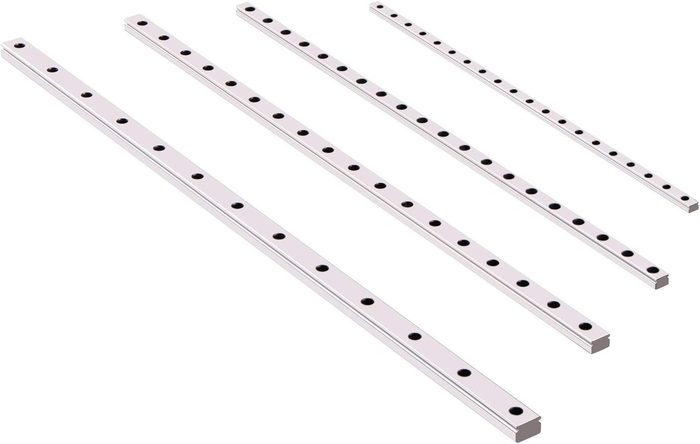

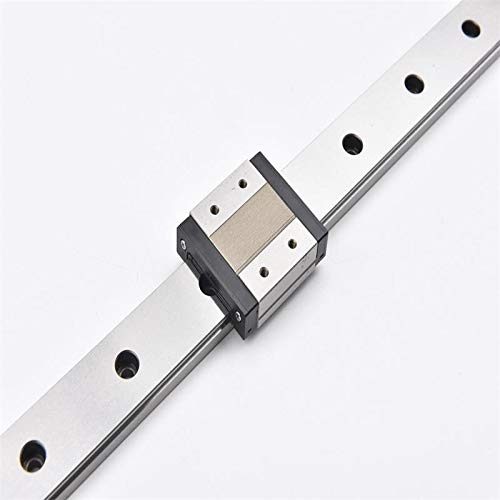

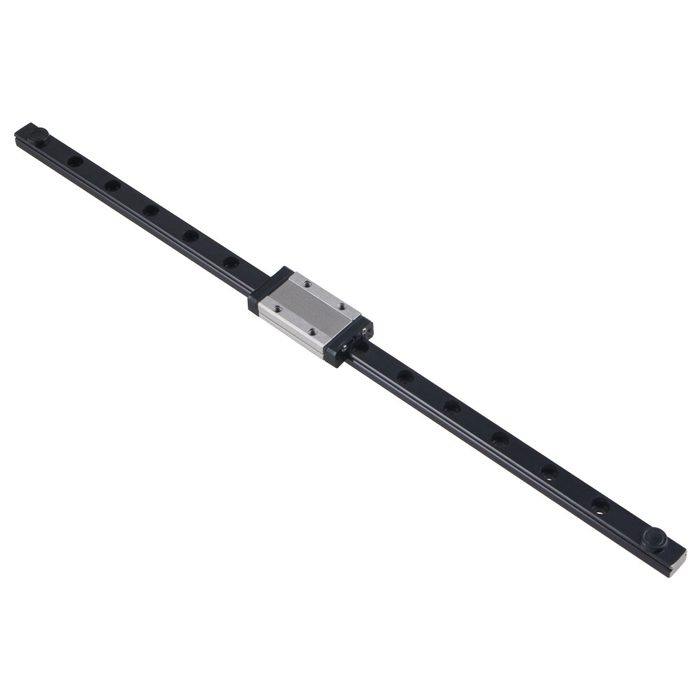

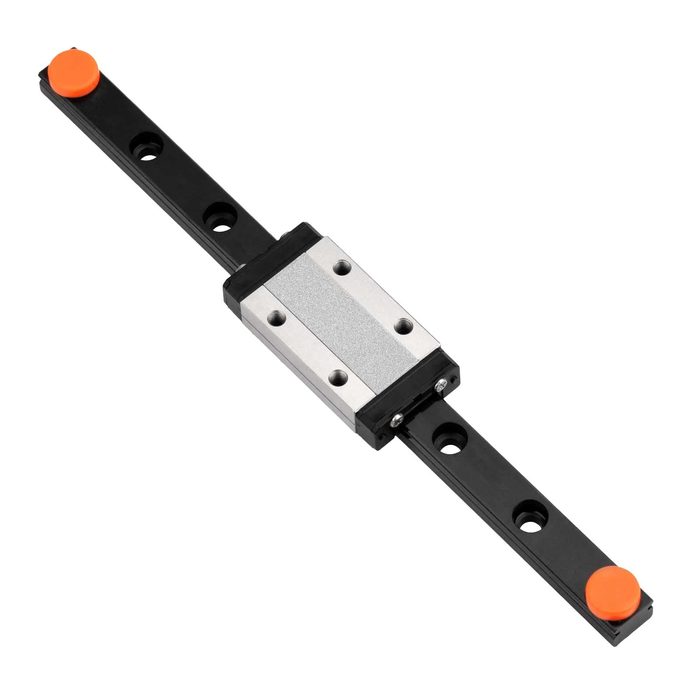

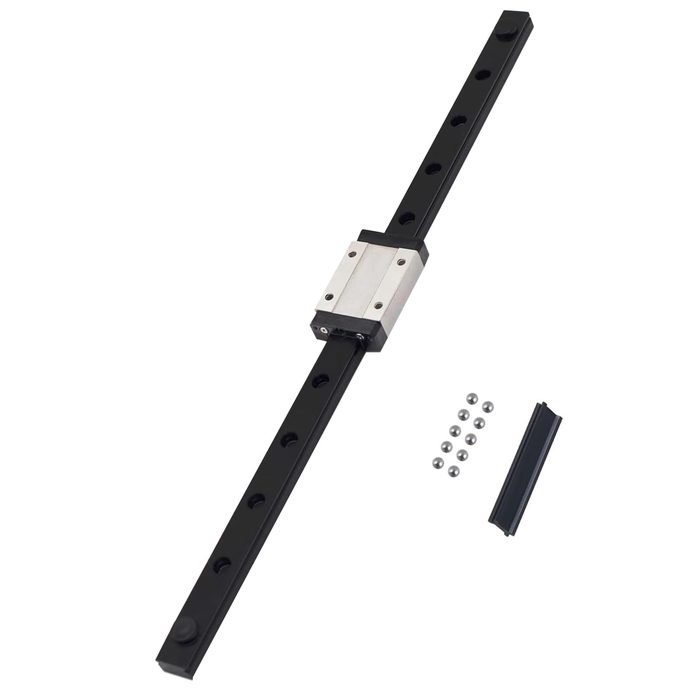

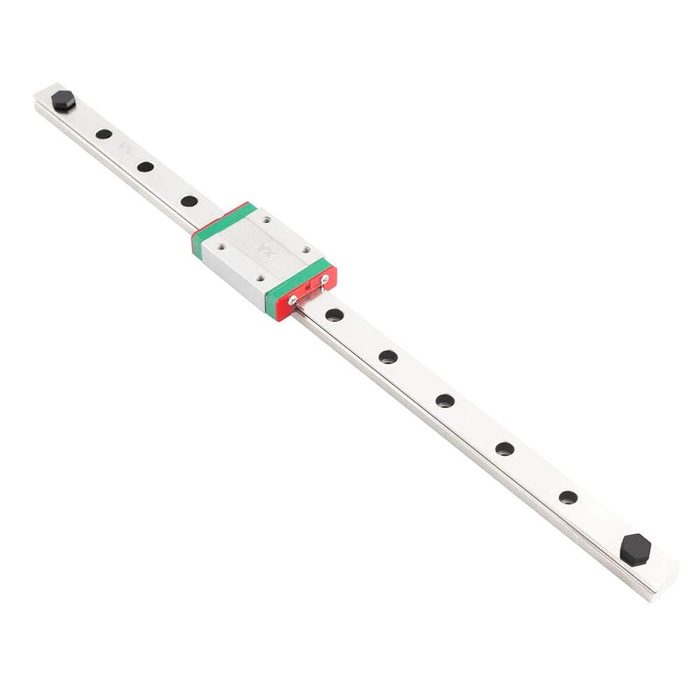

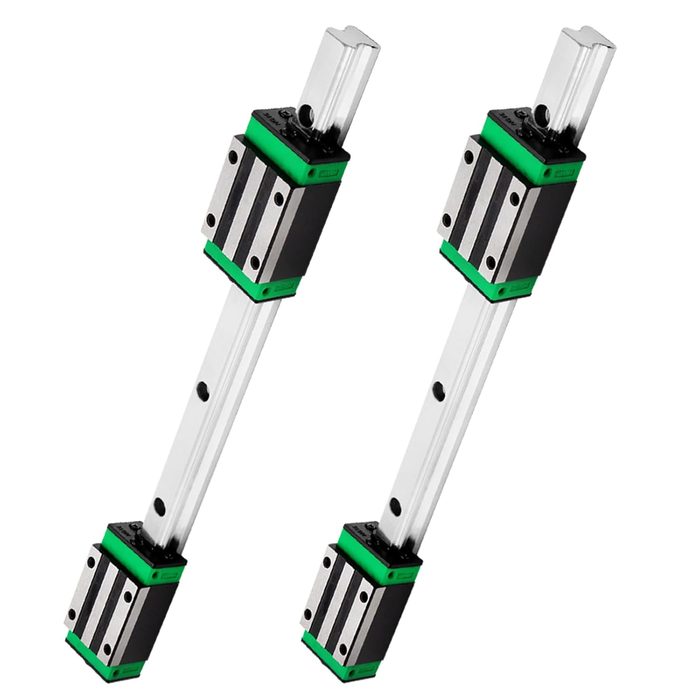

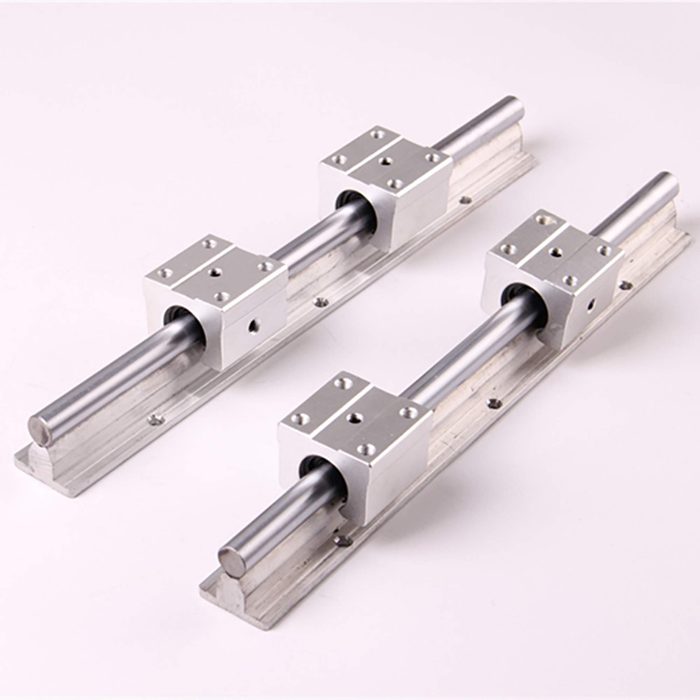

Linear rails and guides provide constrained linear motion for machine axes. The primary types include profile rail, round rail, dovetail slides, and cam-roller guideways. Profile rail systems, often designated HGR or MGN series, consist of a hardened steel rail with precision-ground raceways and a recirculating ball or roller bearing block. Round rail guides utilize hardened and ground cylindrical shafts with open or closed linear bearings. Dovetail slides employ mating angular surfaces for precise, high-rigidity motion, while cam-roller guides use rollers running in V-grooves or on flat surfaces, often for high-speed or contaminated environments. Key selection parameters include rail width, height, length, and mounting hole patterns (e.g., M4, M6). Performance ratings such as dynamic load capacity (C), static load capacity (C0), and moment ratings (Mx, My, Mz) are critical. Common materials are carbon steel, stainless steel, and aluminum, with surface treatments like black oxide or chrome plating available for corrosion resistance or improved wear characteristics. Precision grades (e.g., P, H, N) define running accuracy and parallelism.

How to choose

When selecting linear rails, first determine the required load capacity, considering both static and dynamic forces, and the moment loads. Second, specify the desired precision grade and stiffness, which will influence whether profile rail, round rail, or dovetail is most appropriate; profile rail generally offers higher rigidity than round rail. Third, evaluate the operating environment for factors like contamination, temperature, and corrosion, as these will dictate material (e.g., stainless steel for washdown) and sealing options. Fourth, consider space constraints and stroke length to define rail dimensions and block configurations. Finally, assess the required travel speed and acceleration, which can influence bearing type and lubrication needs.
