Stepper Motors

Stepper Motors

NEMA-frame steppers, geared steppers and driver modules.

Also searched as: nema 17nema 23stepper driverstepper motor

207 parts Best match Lowest price Name Most suppliers

About stepper motors

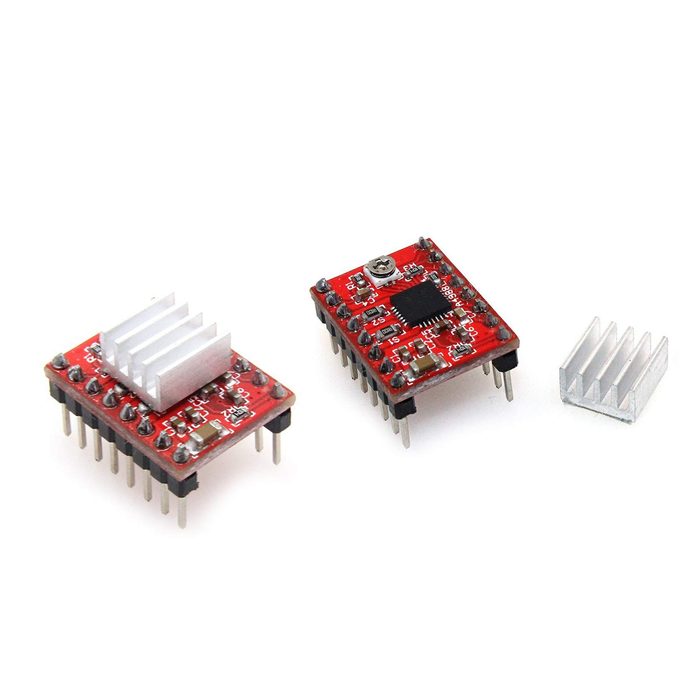

Stepper motors are brushless DC electric motors that divide a full rotation into a number of discrete steps, allowing for precise position control without a feedback system. They are commonly used in applications requiring accurate positioning, such as 3D printers, CNC machines, and robotics. Key types include variable reluctance, permanent magnet, and hybrid synchronous steppers, with hybrid types offering a balance of torque, speed, and step resolution. Standardized NEMA frame sizes, such as NEMA 17, NEMA 23, and NEMA 34, define the motor's faceplate dimensions and mounting hole patterns, facilitating interchangeability. Performance is primarily characterized by holding torque, detent torque, step angle (e.g., 1.8 degrees or 0.9 degrees), rated current per phase, and winding resistance. Geared stepper motors integrate a planetary or spur gearbox to increase torque and resolution at the expense of speed. Stepper motor driver modules, often based on ICs like the A4988 or DRV8825, are essential for controlling the motor's current and step sequence, enabling microstepping for smoother operation and reduced resonance. Driver selection depends on motor current requirements, voltage, and desired microstepping capabilities. Motors typically feature steel laminations for the stator and rotor, with copper windings and often aluminum or steel end bells.

How to choose

When selecting a stepper motor, first determine the required holding torque to overcome static loads and the detent torque for unpowered stability. Next, identify the necessary step angle or microstepping resolution to meet positioning accuracy requirements for the application. Evaluate the available voltage and current capacity of the power supply and select a motor and driver combination that operates within these limits. Consider the operating speed range and select a motor that can maintain sufficient torque at the desired RPMs. Finally, choose a NEMA frame size that fits the mechanical constraints of the system, and if increased torque or finer resolution is needed, consider a geared stepper motor or a driver with microstepping capabilities.
