Relays & Contactors

Relays & Contactors

Electromechanical, solid-state relays, contactors and sockets.

Also searched as: ssrsolid state relaycontactorrelay socketpower relay

21 parts Best match Lowest price Name Most suppliers

About relays & contactors

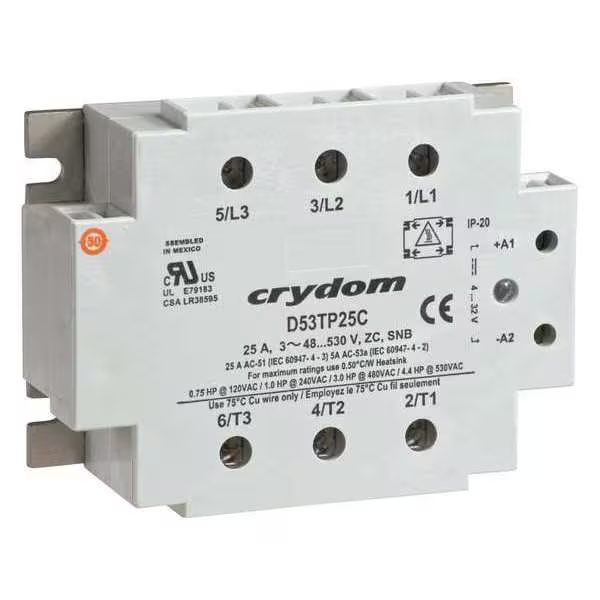

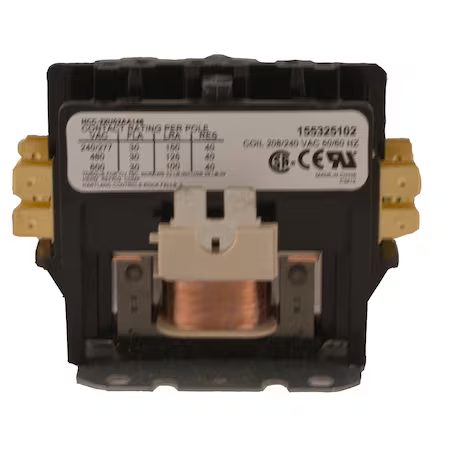

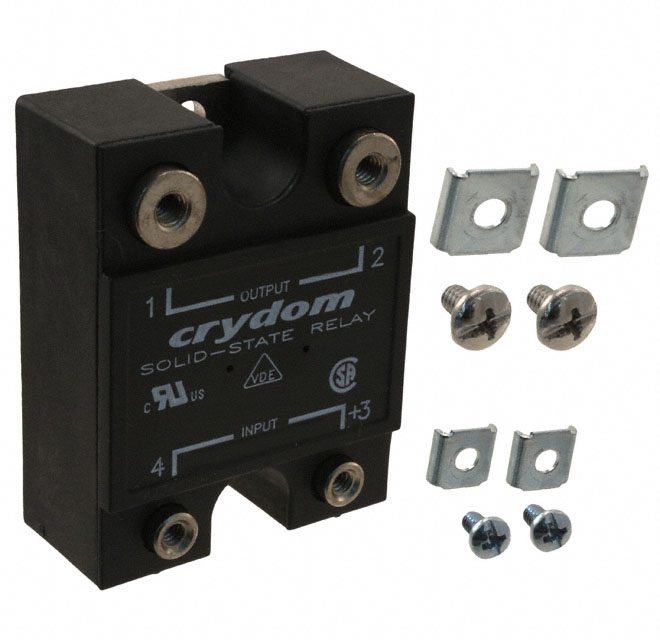

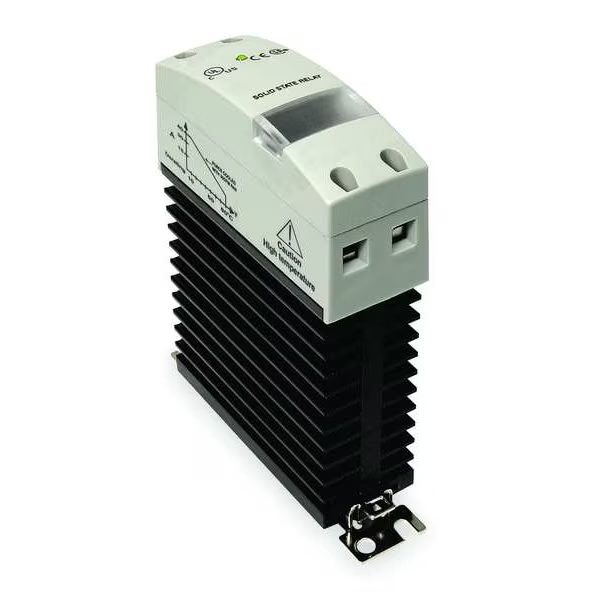

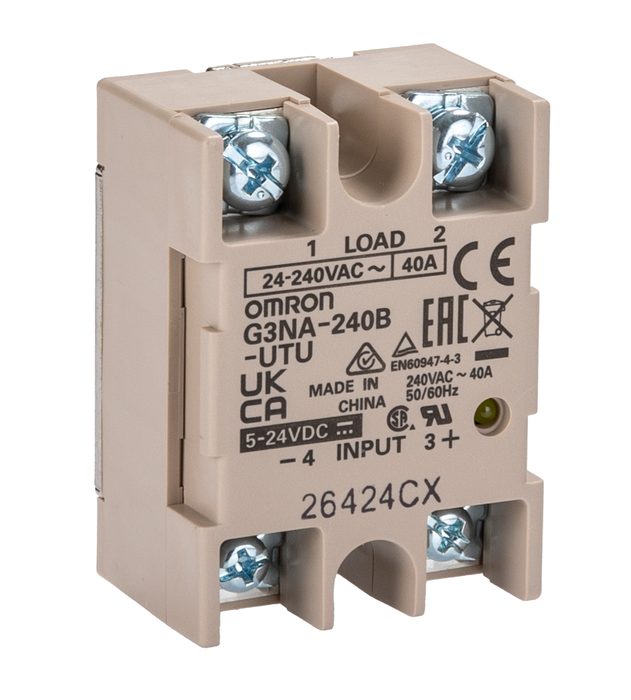

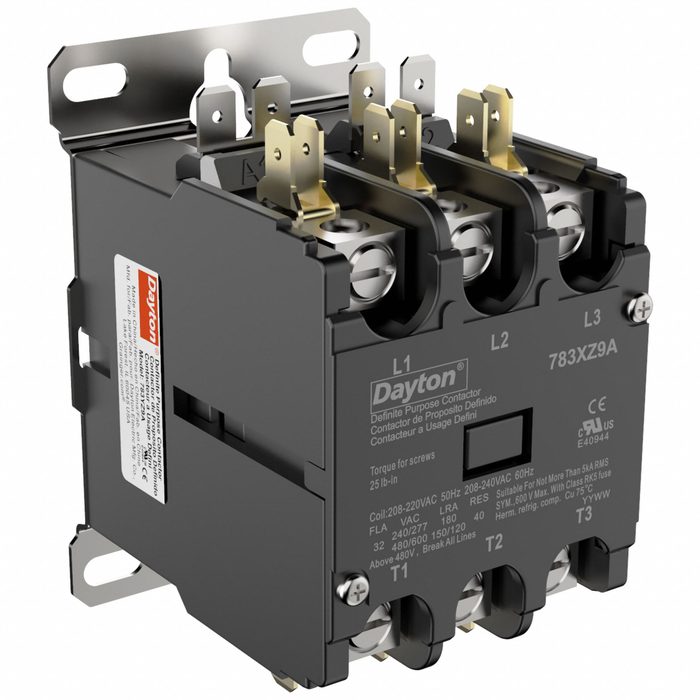

Relays and contactors are electrically operated switches used to control power flow in a circuit. Electromechanical relays utilize an electromagnet to actuate a physical switch, offering galvanic isolation between control and load circuits. Key specifications include coil voltage (e.g., 5VDC, 24VDC, 120VAC), contact configuration (e.g., SPDT, DPDT, 3PST-NO), and contact current rating (e.g., 1A, 10A, 30A). Solid-state relays (SSRs) employ semiconductor devices like TRIACs or MOSFETs to switch loads, providing silent operation, faster switching speeds, and longer lifespan compared to electromechanical types, particularly in high-cycle applications. SSRs are characterized by input control voltage/current, output voltage/current ratings, and typically come in AC or DC switching variants. Contactors are heavy-duty relays designed for switching high-power loads, often found in motor control applications. They are rated by horsepower or current (e.g., 20A, 100A, NEMA size 0-5) and typically feature multiple poles. Relay sockets provide a convenient, often DIN-rail mountable, interface for relays, simplifying installation and replacement. Common materials for contacts include silver alloy (e.g., AgCdO, AgSnO2) for durability and conductivity, often with gold plating for low-current signal applications. Enclosures are typically plastic (e.g., polycarbonate, nylon) for insulation and protection, with specific IP ratings (e.g., IP20, IP67) indicating environmental resistance.

How to choose

Selecting the appropriate relay or contactor begins with defining the load: AC or DC, voltage, and current. This determines the required output switching capability and contact rating. Next, consider the control signal: what voltage and current will drive the coil or input? This dictates the relay's input specifications. Evaluate the switching frequency and expected operational lifespan; high-cycle applications often favor SSRs over electromechanical relays for longevity. Finally, assess the operating environment for temperature, vibration, and ingress protection (IP rating) to select a suitably robust device. For multi-phase loads or high-horsepower motors, contactors with appropriate NEMA or IEC ratings are typically required.
