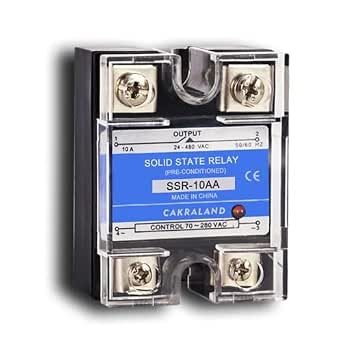

Solid State Relay, 1 Phase, Screw, Surface, SCR

Dayton MPN 1EGL1 Relays & Contactors

This is a 1-phase solid state relay with screw electrical connections and surface mounting. It uses an SCR as the switching component, with an input voltage range of 90 to 280V AC and an output voltage range of 48 to 480V AC. It can handle a maximum output current of 10 A with a heat sink, and is typically used for switching single-phase AC loads.

Specifications

Electrical Connection	Screw
Electrical Phase	1
Input Voltage	90 to 280V AC
Maximum Output Current with Heat Sink	10 A
Mounting Style	Surface
Output Voltage Range	48 to 480V AC
Switch Component Type	SCR

About relays & contactors

Solid State Relay, 1 Phase, Screw, Surface, SCR is listed under Relays & Contactors — electromechanical, solid-state relays, contactors and sockets. Relays and contactors are electrically operated switches used to control power flow in a circuit. Electromechanical relays utilize an electromagnet to actuate a physical switch, offering galvanic isolation between control and load circuits.
