Heaters & Thermal Control
Cartridge, band, strip heaters, thermocouples and controllers.
Also searched as: cartridge heaterband heaterthermocouplepid controllerheating element
-
Temperature PID Controller
Size: 1/4 DIN
-
from $53.85Zoro $53.85 -

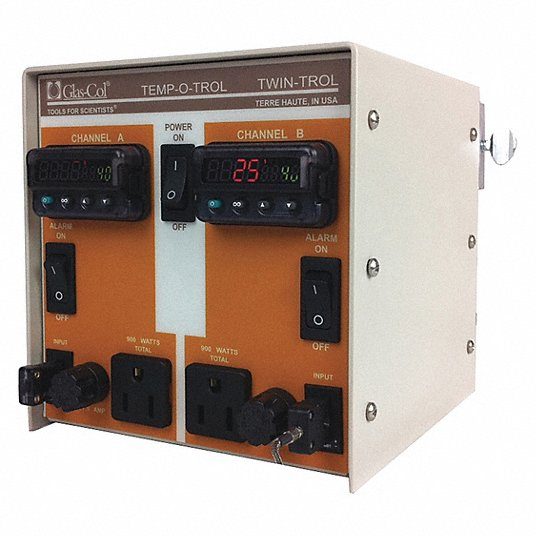

Dual PID Control
Voltage: 120V AC
-

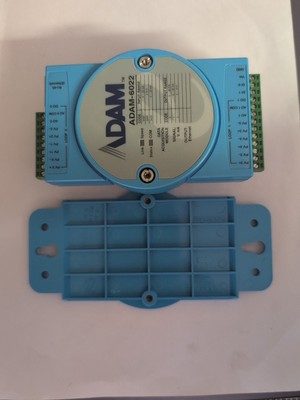

Ethernet-Based Dual-Loop Pid Controller
Connectivity: EthernetLoops: Dual
-

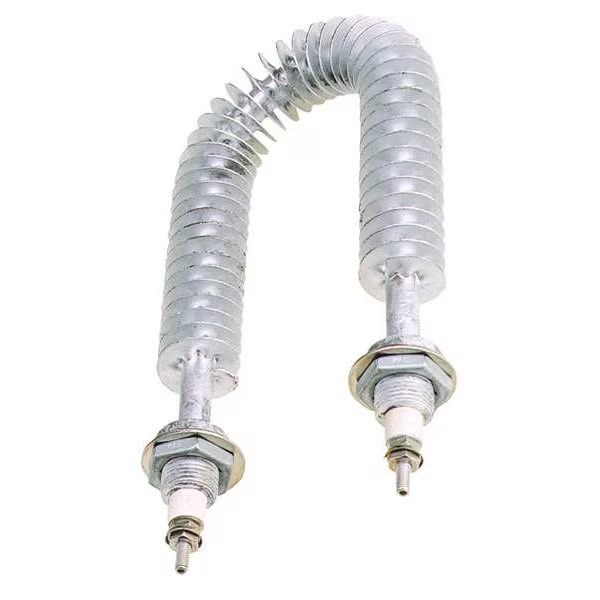

Finned Tubular Heating Element, 240V
Voltage: 240 V
from $90.95Zoro $90.95 -
from $25.79Zoro $25.79 -

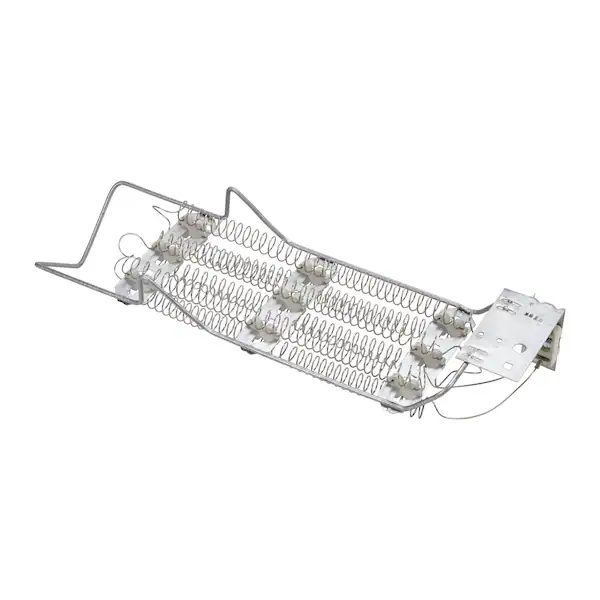

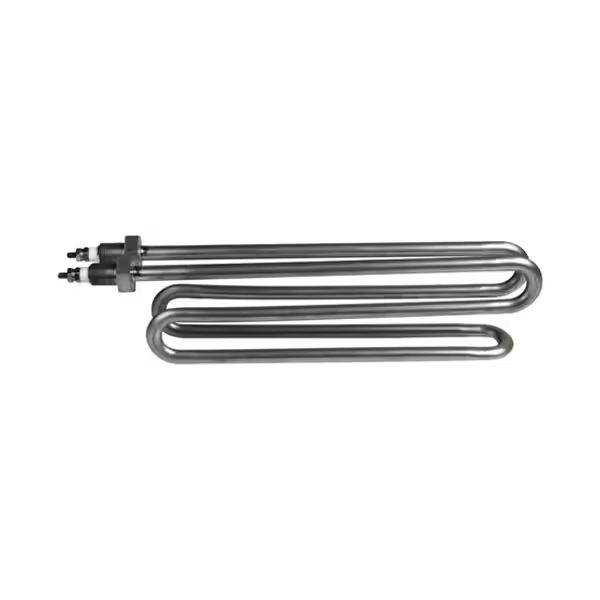

Heating Element, 240V, 6Kw
Voltage: 240 VWattage: 6 kW
from $360.99Zoro $360.99 -

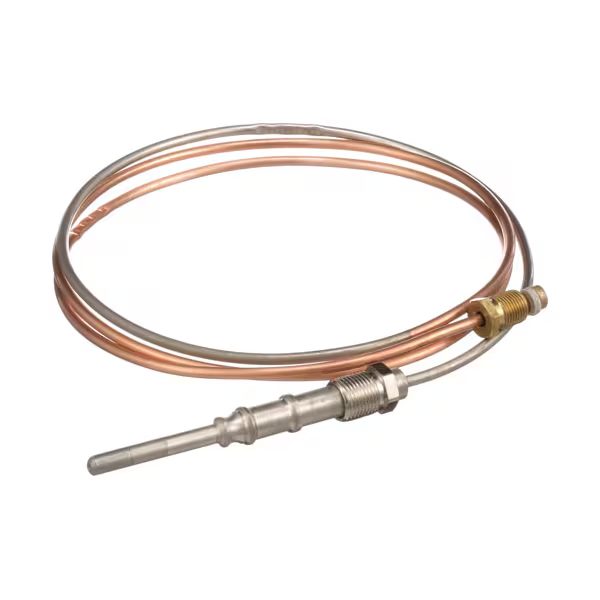

Heavy Duty Thermocouple 1036-7
Connection: 11/32"-32 ThreadedLength: 48"Output: 20-30 Mv
from $62.69Zoro $62.69 -

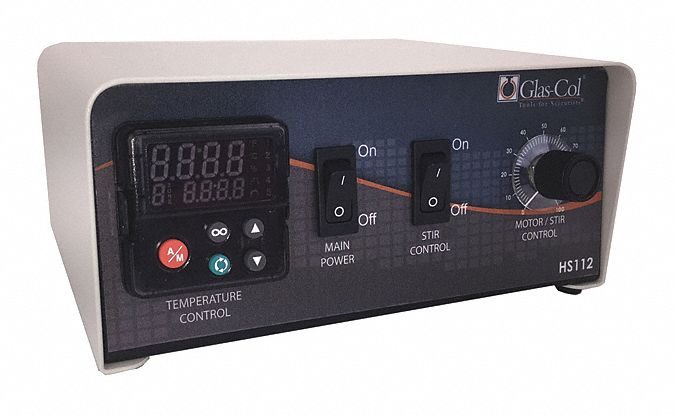

PID Control
Amps: 15 AVoltage: 120V AC
-
-

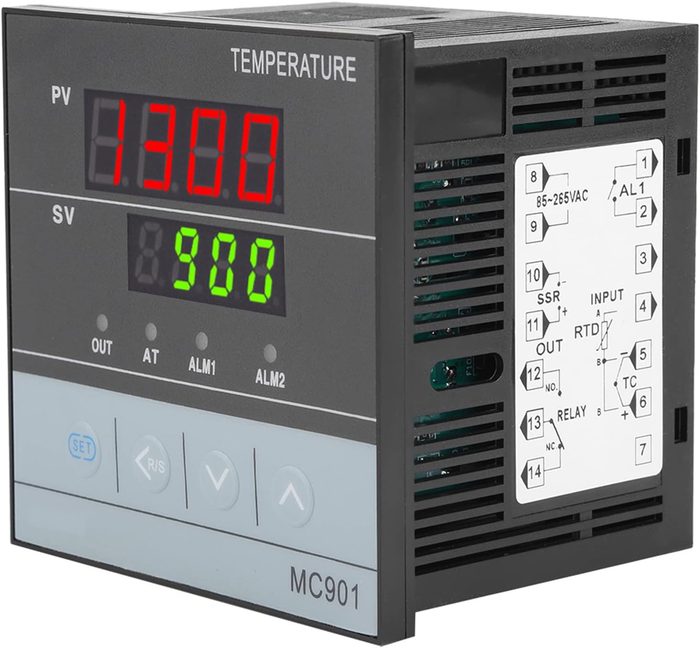

PID Temperature Controller
Control Mode: PIDInput Voltage: 100 to 240V ACOutput: 4 to 20 mA, Relay
-

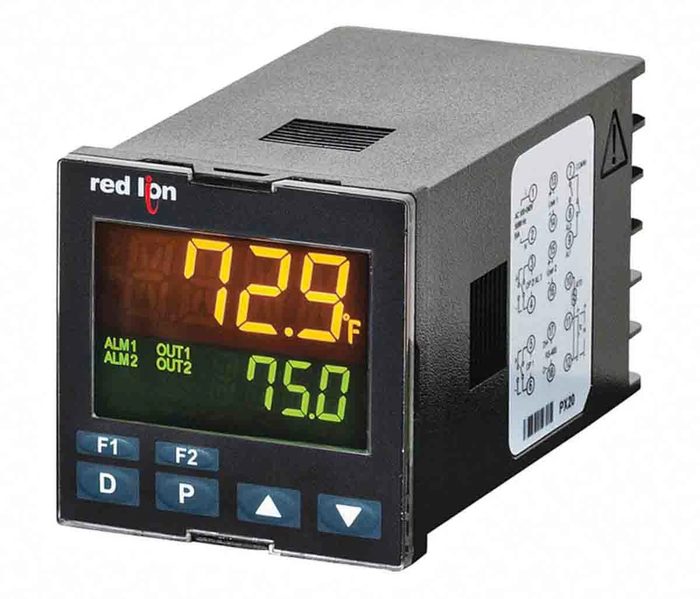

PID Temperature Controller
Adjustable Temperature Range: 0-40°C
-
-

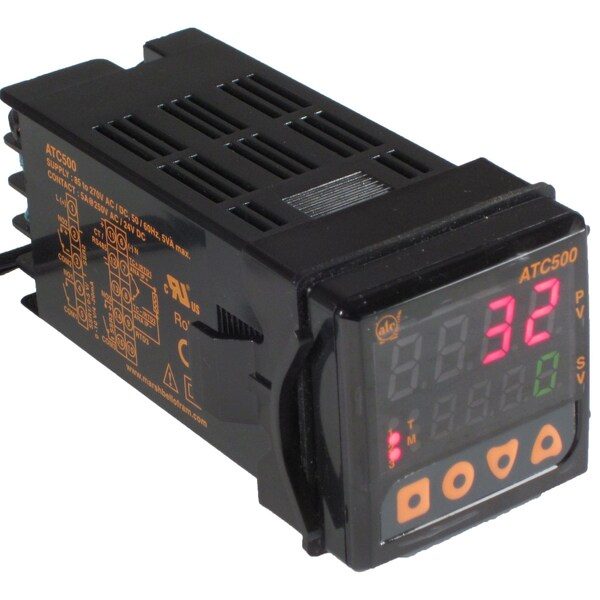

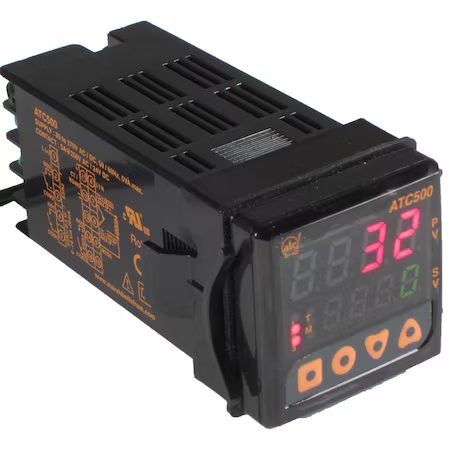

TC PID Controller
Display: Dual 4-digit 7-segment LED
-

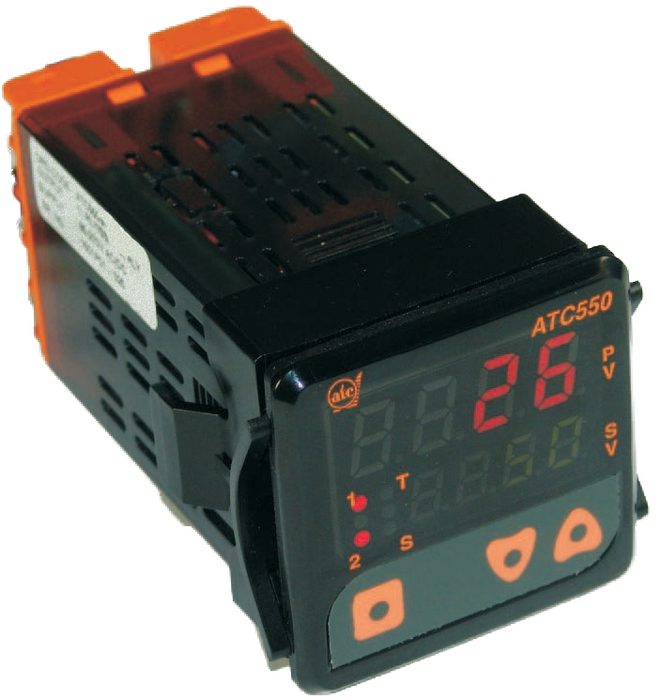

TC/PID Controller
Input Voltage: 100 to 240V ACOutput: (2) Relay
-

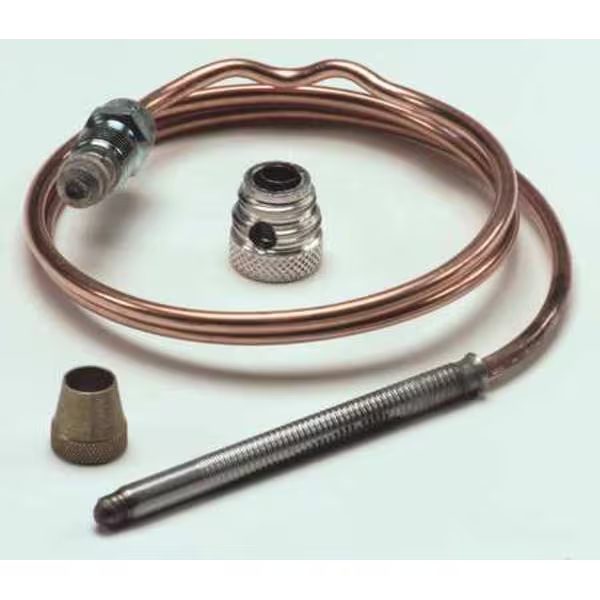

Thermocouple, LP/NG, 20 to 30 mV, 36 in L., Threaded, Tinnerman Clip
Connection: ThreadedFuel Type: LP/NGLength: 36 inOutput: 20 to 30 mV
from $9.99Zoro $9.99 -
from $17.19Zoro $17.19
About heaters & thermal control
Heaters and thermal control components are essential for maintaining precise temperature in industrial processes. This category includes various heating elements such as cartridge, band, and strip heaters, alongside critical sensing and control devices like thermocouples and PID controllers. Cartridge heaters are typically cylindrical, inserted into drilled holes, and specified by diameter (e.g., 1/4", 3/8", 1/2"), length, voltage (e.g., 120V, 240V), and wattage. Band heaters, designed for external surface heating of cylindrical objects, are defined by their diameter, width, voltage, and wattage, often available in mica or ceramic insulation with various clamping mechanisms. Strip heaters, for flat surface heating, are characterized by length, width, voltage, and wattage, with options for finned or unfinned configurations. Thermocouples, common temperature sensors, are categorized by type (e.g., J, K, T, E) and junction style (grounded, ungrounded, exposed), with sheath materials like Inconel or stainless steel, and specified by probe diameter and length. PID controllers manage heating processes by comparing a setpoint to a process variable from a sensor, outputting control signals to heating elements, and are selected based on input type (e.g., J/K thermocouple, RTD), output type (e.g., relay, SSR, analog), and control algorithm capabilities.
How to choose
When selecting heaters and thermal control components, first define the heating application: surface or internal, and the geometry of the heated object. For internal heating, cartridge heaters are suitable; for external cylindrical, band heaters; for flat surfaces, strip heaters. Next, determine the required temperature range and power density (W/in² or W/cm²) to achieve the desired temperature within the specified timeframe. This dictates wattage and element type. Subsequently, select the appropriate temperature sensor, typically a thermocouple (Type K for higher temperatures, Type J for lower) or RTD, based on accuracy needs and environmental conditions. Finally, choose a PID controller based on the sensor input type, required output control (e.g., solid-state relay for precise control, mechanical relay for simpler applications), and desired control sophistication, ensuring compatibility with the chosen heating element's voltage and current ratings.
