Threaded Rod & Studs
All-thread, double-end studs and anchor rod in steel and stainless.
Also searched as: all threadall-thread rodstudsanchor rodacme rod
-

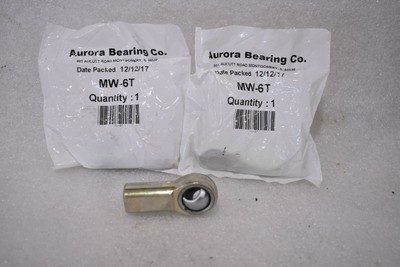

Female Threaded Right Hand Spherical Rod End MW-M18T
Bore Diameter: 18 mmLubrication: Self-LubricatingShank Thread Size: M18 x 1.5Thread Hand: Right HandType: Spherical Rod End
from $286.92Motion Industries $286.92 -
Female Threaded Right Hand Spherical Rod End SPW-4
Bore Diameter: 0.2500 inLubrication: Self-LubricatingShank Thread Size: 1/4-28Thread Hand: Right HandType: Spherical Rod End
from $26.03Motion Industries $26.03 -
Flat Cam Follower
Roller Diameter: 1.6250 inRoller Width: 0.8750 inSeal: SealedStud Diameter: 0.6250 in
-
-

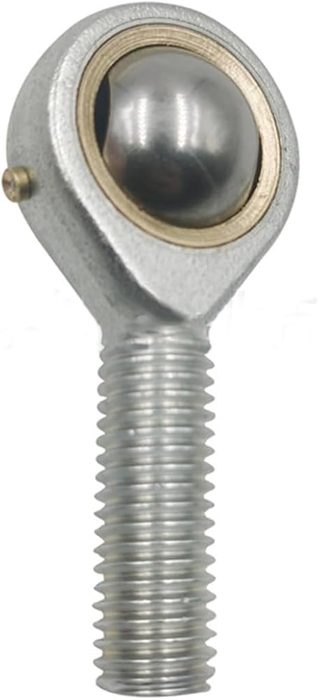

Heim® Spherical Rod End HM8CG
Bore Diameter: 0.5000 inGrade: CommercialLubrication: LubricatableShank Thread Size: 1/2-20Type: Spherical Rod End
-
Male Threaded Right Hand Rod End CMR6
Bore Diameter: 0.3750 inFitting: No FittingGrade: Economy/General PurposeShank Thread Size: 3/8-24Thread Hand: Right Hand
from $6.28Motion Industries $6.28 -

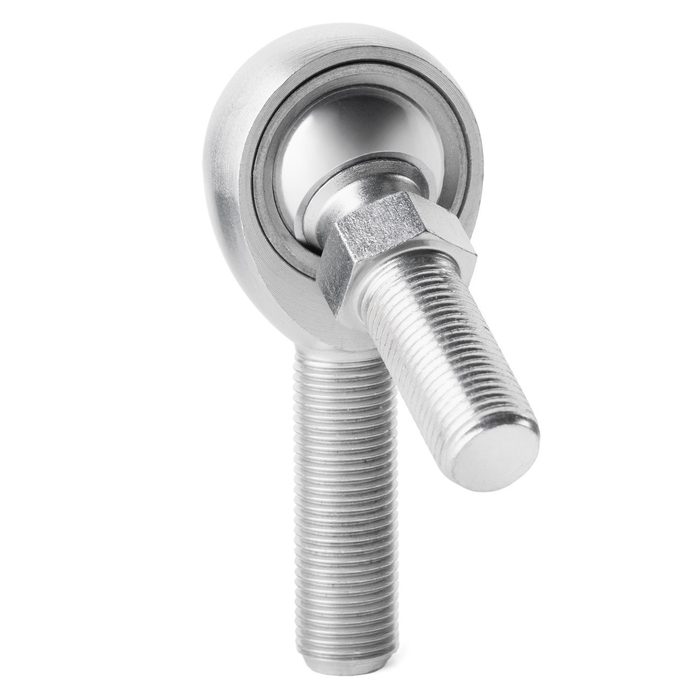

Male Threaded Right Hand Rod End HMR3
Bore Diameter: 0.1900 inFitting: No FittingGrade: PrecisionShank Thread Size: 10-32 inThread Hand: Right Hand
from $18.55Motion Industries $18.55 -
Male Threaded Right Hand Rod End HMX-4G
Bore Diameter: 0.2500 inFitting: With Lubrication FittingShank Thread Size: 5/16-24 inThread Hand: Right HandType: Rod End
-
Male Threaded Right Hand Spherical Rod End MM-M25T
Bore Diameter: 25 mmGrade: PrecisionLubrication: Self-LubricatingShank Thread Size: M24 x 2.0Thread Hand: Right Hand
from $487.80Motion Industries $487.80 -

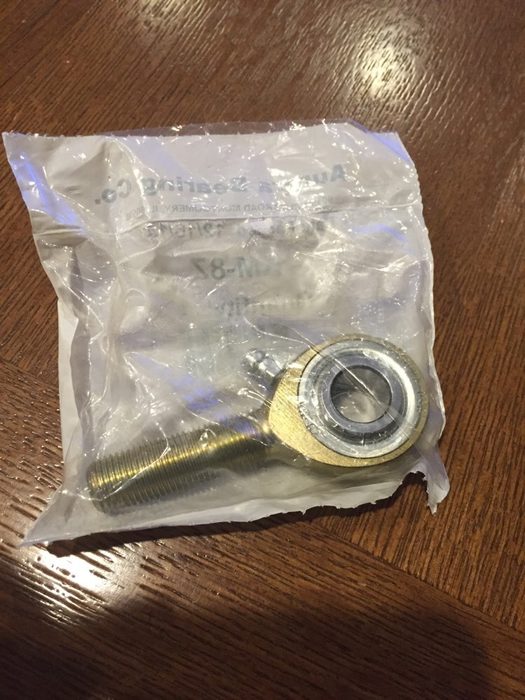

Male Threaded Right Hand Spherical Rod End VCM-7
Bore Diameter: 0.4375 inGrade: Economy/General PurposeLubrication: Self-LubricatingShank Thread Size: 7/16-20Thread Hand: Right Hand
from $29.77Motion Industries $29.77 -
Spherco® Spherical Rod End TML7
Bore Diameter: 0.4375 inGrade: CommercialLubrication: Non-LubricatableShank Thread Size: 7/16-20Type: Spherical Rod End
from $40.98Motion Industries $40.98
About threaded rod & studs

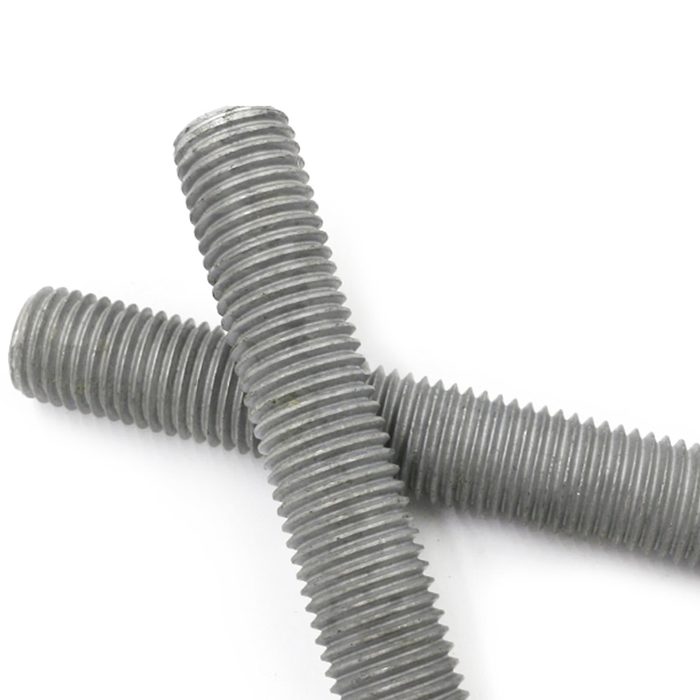

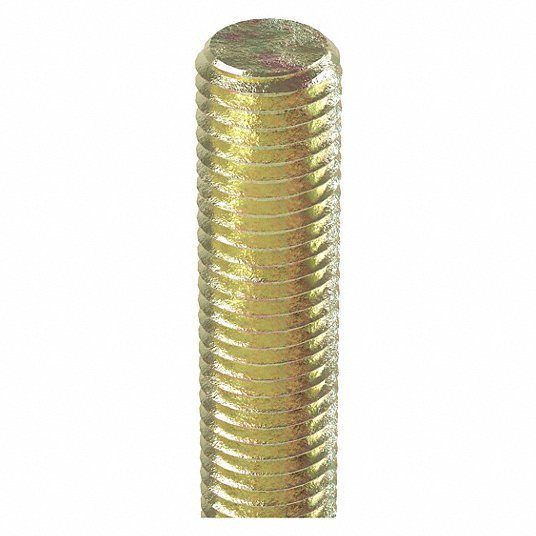

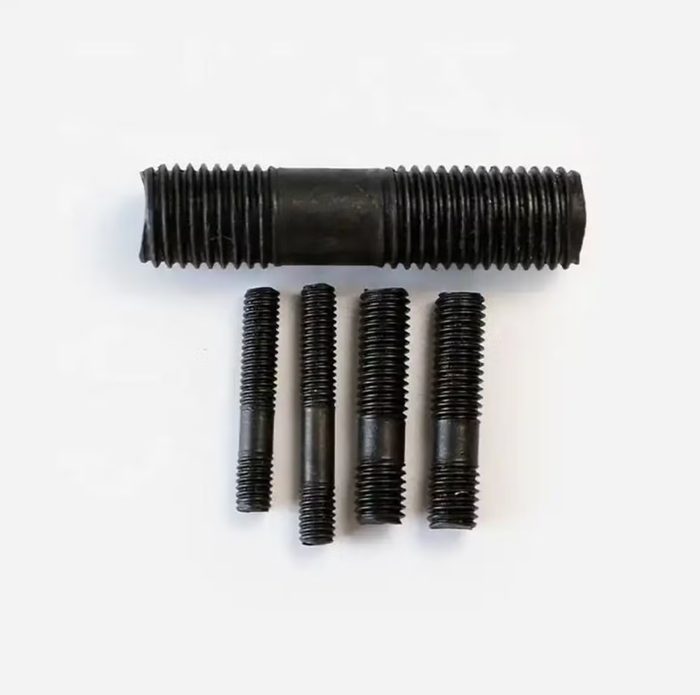

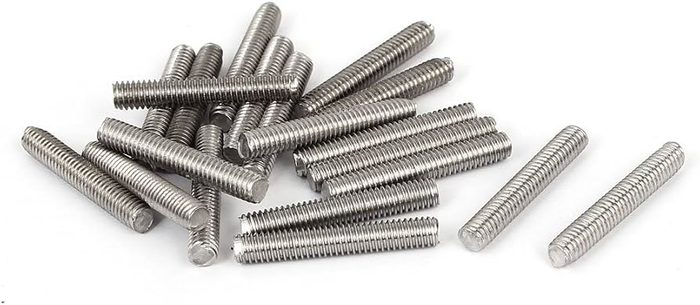

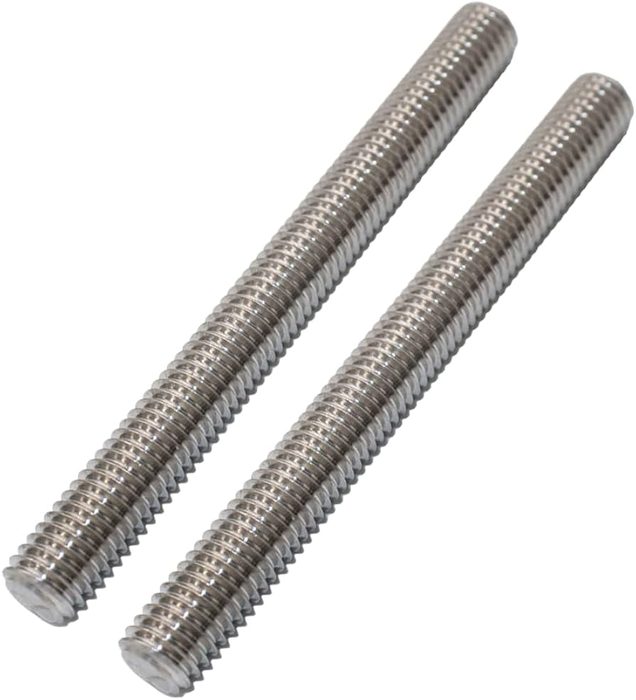

Threaded rods and studs are fasteners designed for tension applications, providing continuous external threading along their length. All-thread rod, also known as fully threaded rod or continuously threaded rod, is available in lengths up to 12 feet or more, commonly specified by nominal diameter (e.g., 1/4 inch, M6), thread pitch (e.g., 20 TPI, 1.0 mm), and material grade. Thread forms include UNC, UNF, and metric coarse/fine. Double-end studs feature threads on both ends with an unthreaded body in the center, often used for flange connections or where one end is permanently installed. Anchor rods, frequently bent into an L-shape or J-shape, are embedded in concrete to secure structural elements; they are typically specified by diameter, length, and bend dimensions. Common materials include low-carbon steel (e.g., ASTM A36, Grade 2), medium-carbon steel (e.g., Grade 5, Grade 8, ASTM A193 B7), and stainless steel (e.g., 304, 316). Finishes range from plain (black oxide) to zinc-plated, hot-dip galvanized, or specialty coatings for corrosion resistance. Selection is driven by required tensile strength, shear strength, and environmental conditions.
How to choose
Selecting the appropriate threaded rod or stud involves a sequential decision process. First, determine the required load-bearing capacity and application environment to establish the necessary material grade (e.g., ASTM A36, Grade 8, 316 Stainless Steel) and corrosion resistance. Second, define the nominal diameter and thread pitch based on the mating components and required strength, selecting between imperial (UNC, UNF) or metric (M) standards. Third, identify the specific fastener type: all-thread for continuous engagement, double-end stud for fixed-end applications, or anchor rod for concrete embedment. Fourth, specify the required length, considering engagement depth and projection. Finally, select any necessary coatings or finishes for enhanced durability or environmental protection, balancing cost against performance requirements.
