Switches

Switches

Toggle, rocker, limit, push-button, rotary and selector switches.

Also searched as: limit switchtoggle switchpush buttonrocker switchmicro switch

14 parts Best match Lowest price Name Most suppliers

About switches

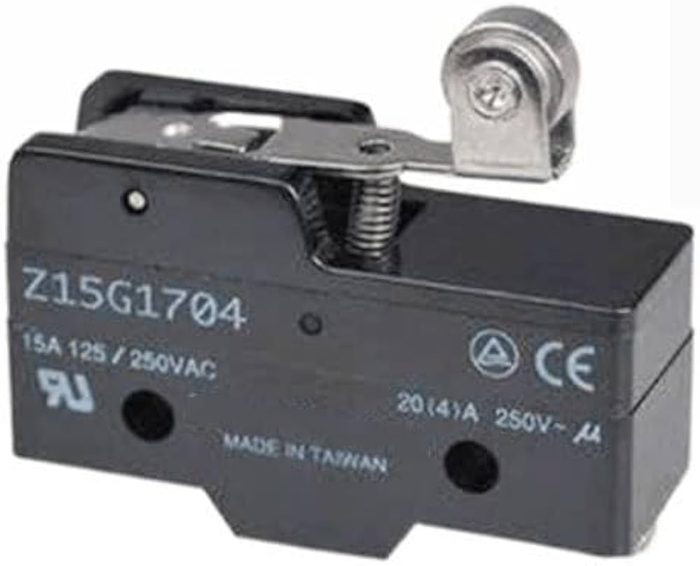

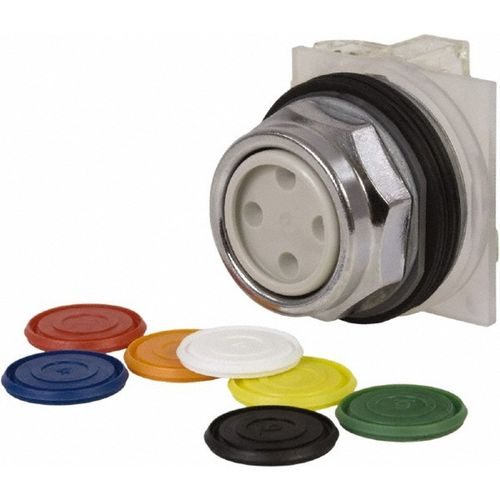

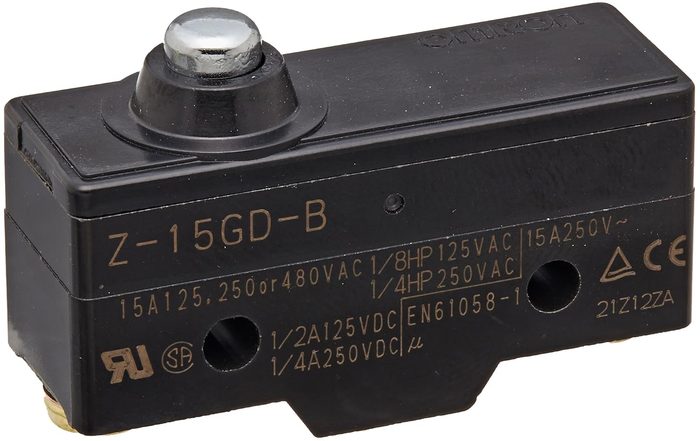

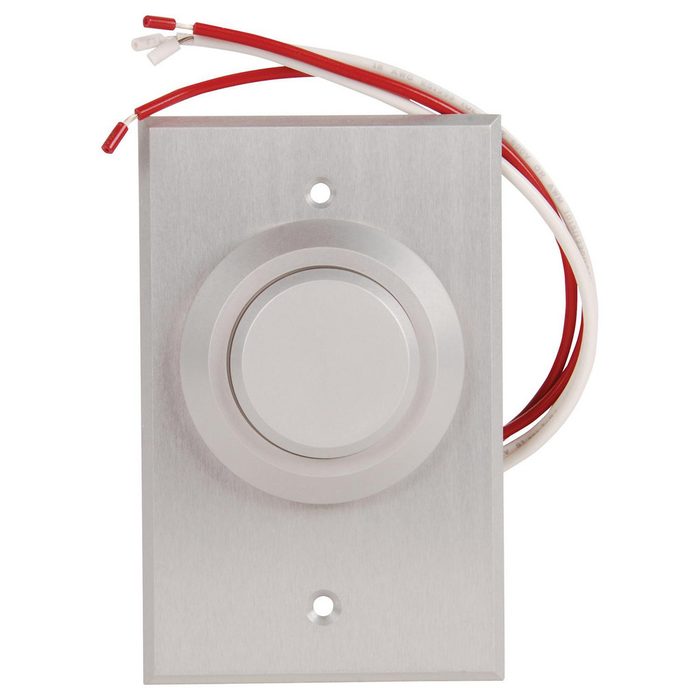

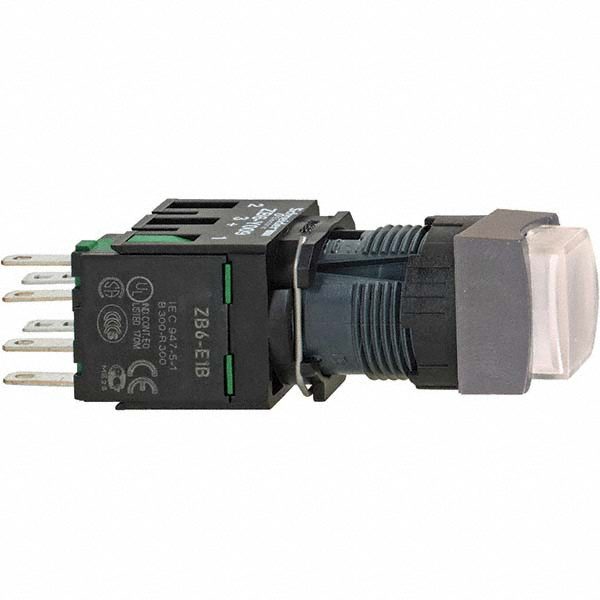

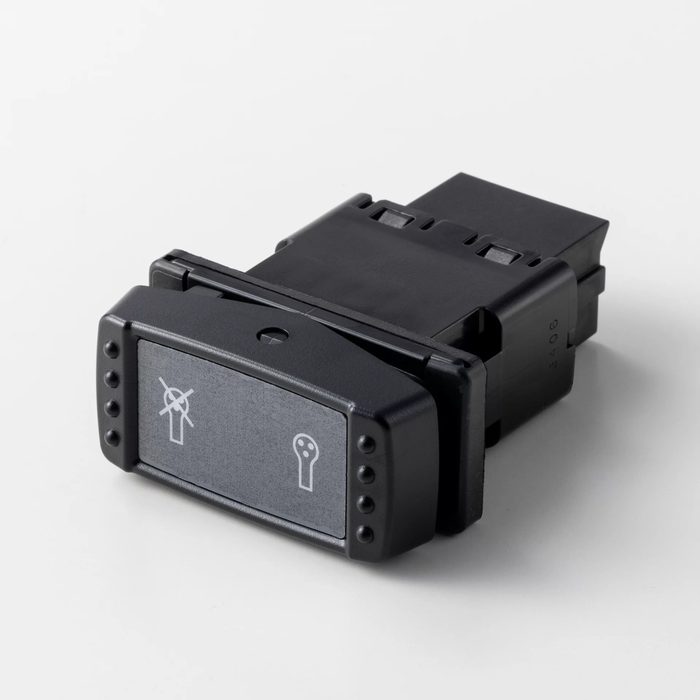

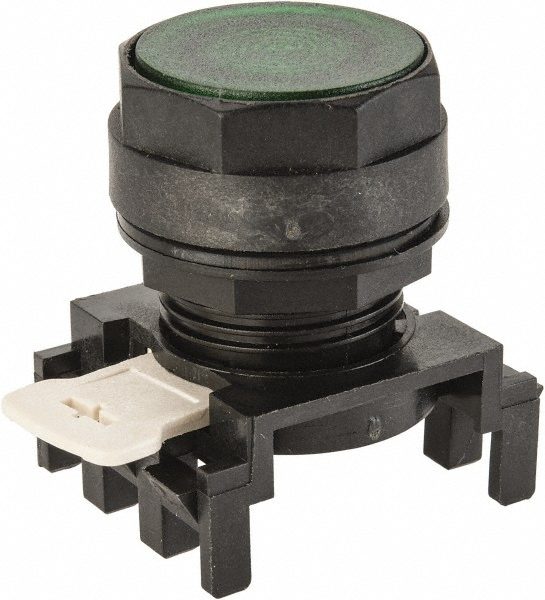

Switches are electromechanical components that control the flow of current in a circuit. They are broadly categorized by their actuation method and contact configuration. Common types include toggle switches, actuated by a lever; rocker switches, which pivot on an axis; push-button switches, momentary or latching; rotary switches, with multiple positions; and selector switches, offering distinct detented positions. Limit switches are a specialized type, often used for position sensing in machinery, available in plunger, roller, or lever actuator styles. Key selection parameters include contact rating (voltage and current, AC/DC), number of poles and throws (e.g., SPST, DPDT), actuation force, operating temperature range, and electrical life cycles. Environmental considerations, such as IP rating for dust and water ingress, are critical for industrial applications. Materials for contacts typically include silver alloys for conductivity and arc resistance, while housings are often molded from engineering plastics like nylon or polycarbonate, or metals such as brass or stainless steel for robust applications. Terminations vary from solder lugs and quick-connect terminals to screw terminals or PCB pins.

How to choose

When selecting a switch, begin by defining its primary function: momentary or maintained contact. Next, determine the electrical load characteristics—voltage (AC/DC) and current—to ensure appropriate contact ratings. Consider the required number of poles and throws (e.g., SPDT for simple on-off, DPDT for reversing motor direction). Evaluate the operating environment for temperature extremes, vibration, and potential exposure to dust or moisture, necessitating a specific IP rating. Finally, select the actuation method (toggle, push-button, rotary) and mounting style (panel, PCB, surface) based on user interface requirements and physical integration constraints. Trade-offs often involve durability versus cost, or compact size versus higher current capacity.
