Circuit Protection

Circuit Protection

Fuses, breakers, holders, surge suppressors and disconnects.

Also searched as: fusescircuit breakerfuse holdersurge protectordisconnect

34 parts Best match Lowest price Name Most suppliers

About circuit protection

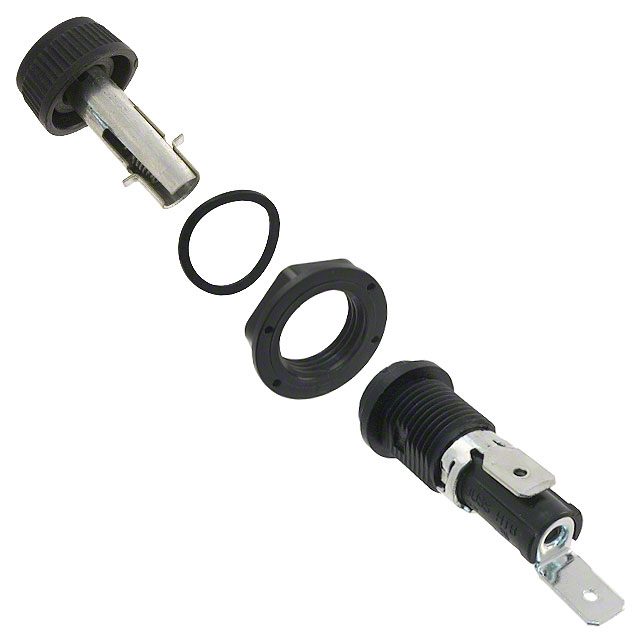

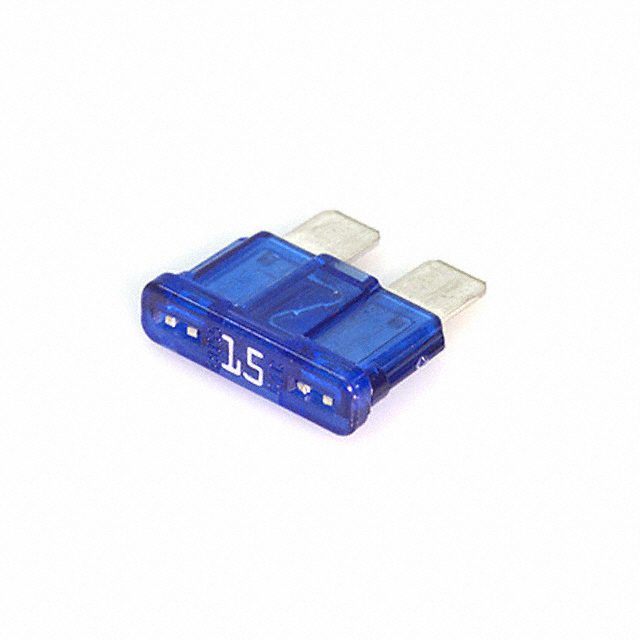

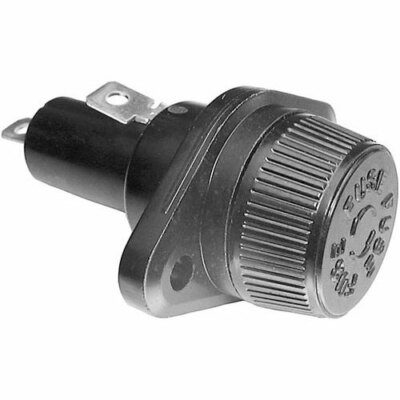

Circuit protection devices safeguard electrical systems from overcurrents, short circuits, and voltage surges. This category encompasses fuses, circuit breakers, fuse holders, surge suppressors, and disconnect switches. Fuses are sacrificial devices containing a metallic wire or strip that melts and breaks the circuit when current exceeds a specified rating. Key parameters include current rating (Amperes), voltage rating (Volts AC/DC), breaking capacity (kA), and time-current characteristics (e.g., fast-acting, time-delay). Common fuse types include cartridge (e.g., UL Class CC, J, RK5, T), blade (automotive), and surface-mount (SMD) fuses. Circuit breakers are resettable protective devices, available in thermal, magnetic, or thermomagnetic trip mechanisms. Specifications include current rating, voltage rating, number of poles, interrupt rating, and trip curve (e.g., B, C, D for IEC). Fuse holders are designed for specific fuse sizes and types, rated by current and voltage, and come in panel mount, PCB mount, or in-line configurations. Surge suppressors, or transient voltage surge suppressors (TVSS), protect against voltage spikes, characterized by clamping voltage, energy absorption (Joules), and response time. Disconnect switches isolate power, with ratings for current, voltage, and sometimes horsepower, and can be fused or non-fused, often with NEMA enclosure ratings for environmental protection.

How to choose

When selecting circuit protection, first determine the required current and voltage ratings of the circuit to be protected. Second, identify the fault current capacity of the system to ensure the chosen device has an adequate interrupt or breaking capacity. Third, consider the desired response time to overcurrents; fast-acting fuses protect sensitive electronics, while time-delay fuses accommodate inrush currents. Fourth, evaluate environmental conditions and mounting requirements, selecting appropriate enclosure ratings (e.g., NEMA 4X for harsh environments) and mounting styles (e.g., DIN rail, panel mount, PCB). Finally, decide between resettable circuit breakers for convenience or sacrificial fuses for precise, single-use protection, weighing maintenance against protection specificity.
