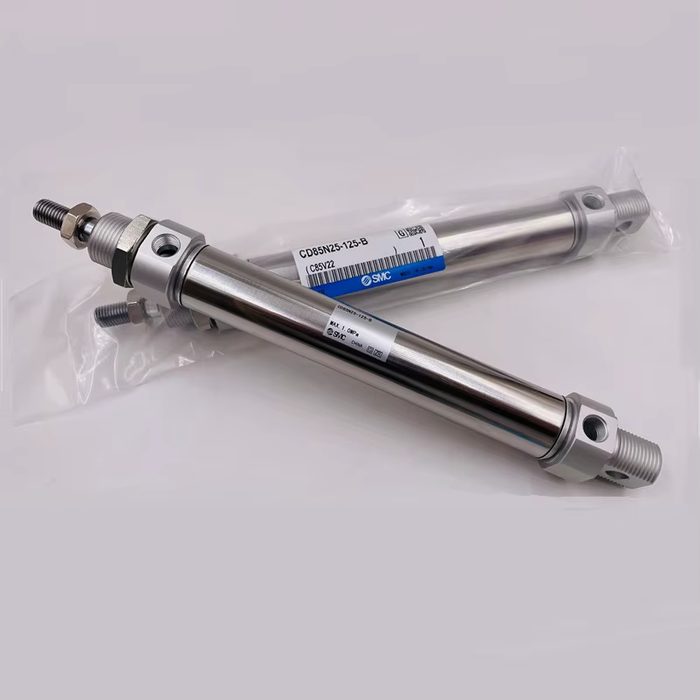

Cylinder, ISO, Double Acting

SMC MPN CD85N20-100C-B Pneumatic Cylinders

This ISO double-acting pneumatic cylinder has a 20 mm bore and 100 mm stroke, defining its force and travel. With a 1/8 inch inlet and M8 x 1.25 thread, it is typically used for general-purpose linear actuation in automated systems.

Specifications

Body Diameter	22 mm
Bore Diameter	20 mm
Inlet Size	1/8 in
Rod Diameter	8 mm
Stroke Length	100 mm
Thread Size	M8 x 1.25

About pneumatic cylinders

Cylinder, ISO, Double Acting is listed under Pneumatic Cylinders — single and double-acting, compact, rodless and guided cylinders. Pneumatic cylinders convert compressed air energy into linear motion, providing force and displacement for various industrial automation tasks. They are broadly categorized by their acting mechanism: single-acting cylinders extend with air pressure and retract via spring force, while double-acting cylinders use air pressure for both extension and retraction.
