Pulleys & Sheaves

Pulleys & Sheaves

Timing pulleys, V-sheaves, idlers and taper-lock bushings.

Also searched as: timing pulleysheavesidler pulleytaper lockgt2 pulley

23 parts Best match Lowest price Name Most suppliers

About pulleys & sheaves

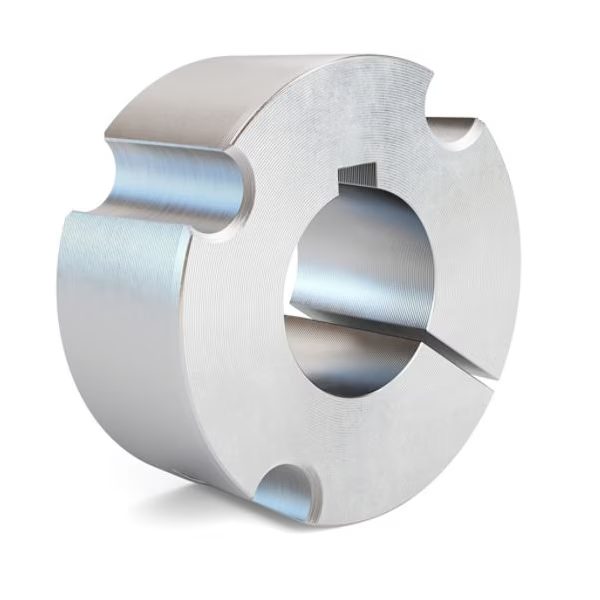

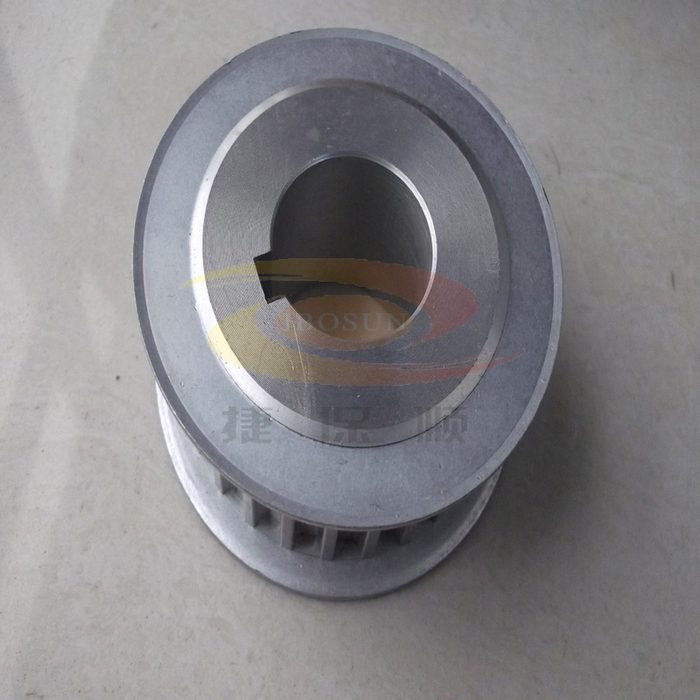

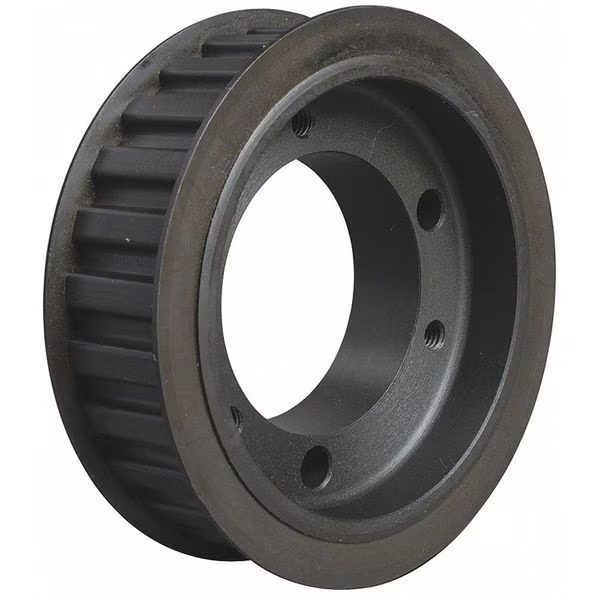

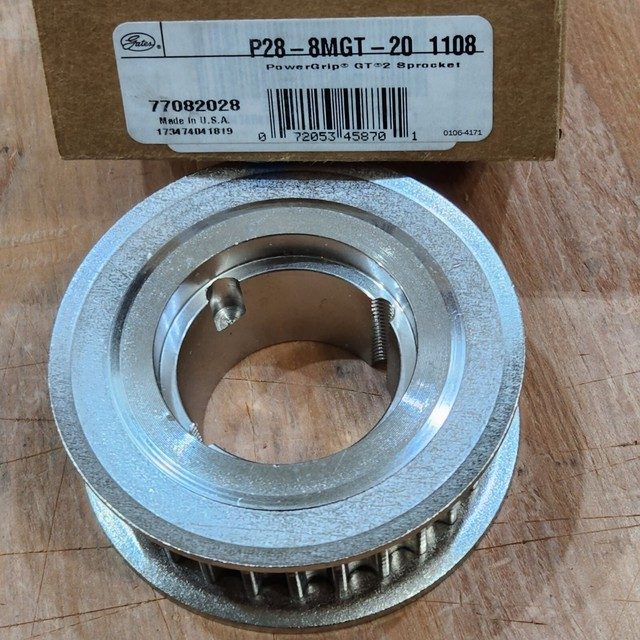

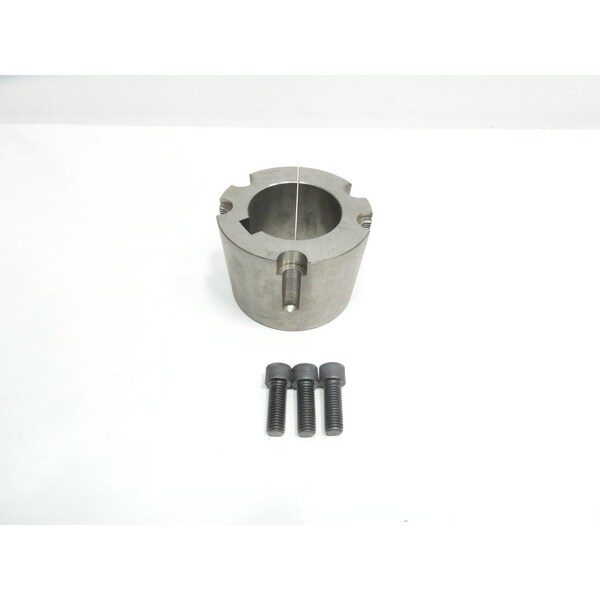

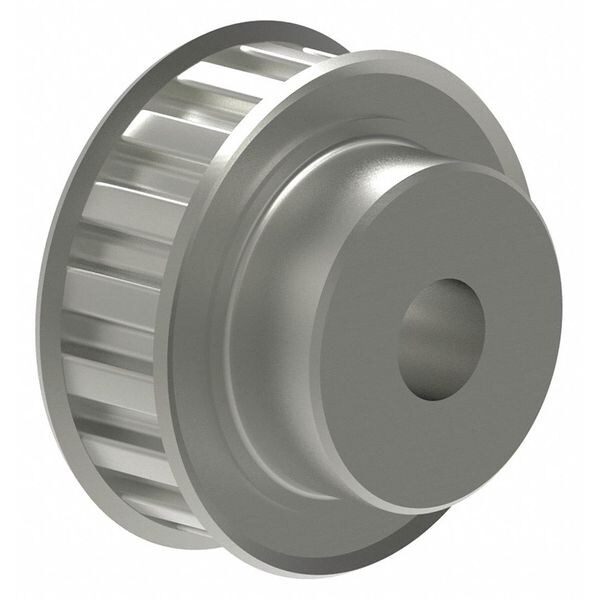

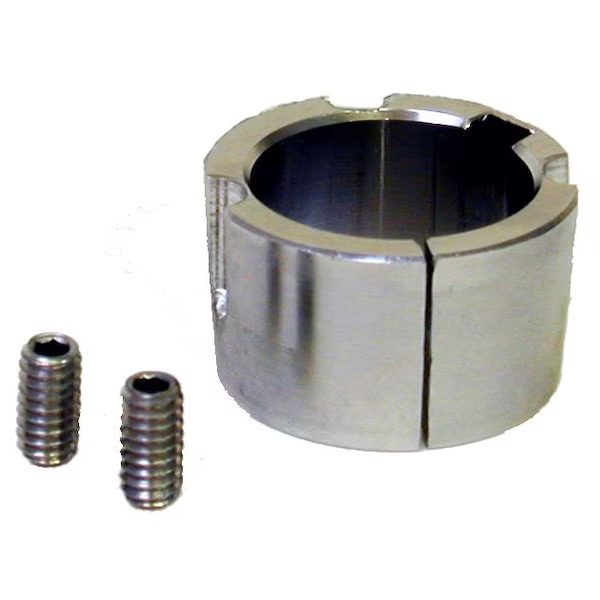

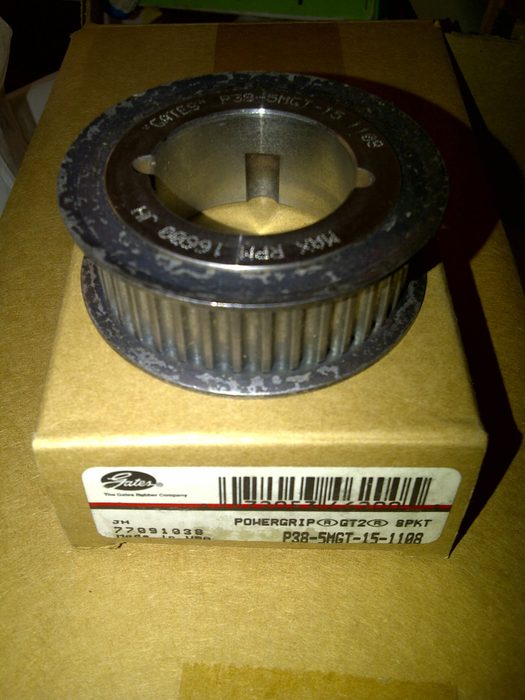

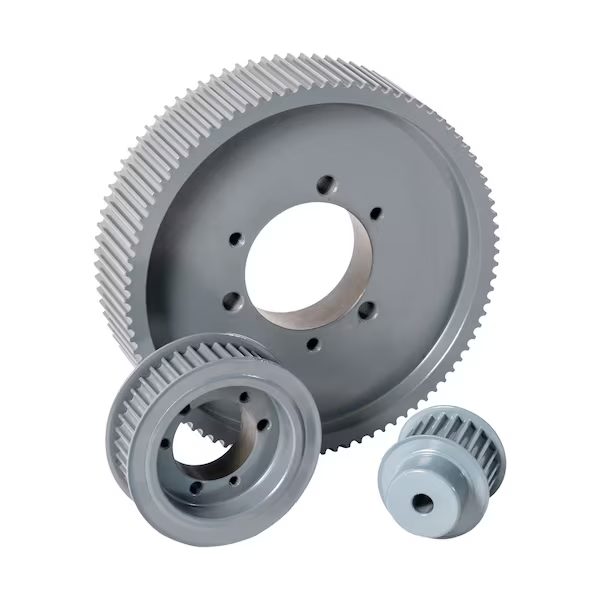

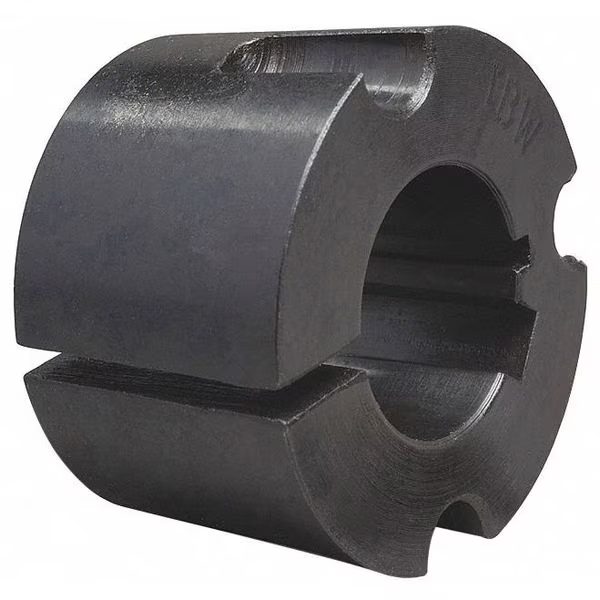

Pulleys and sheaves are mechanical components designed to transmit power and motion through belts, facilitating speed changes, torque multiplication, or directional alteration in power transmission systems. This category encompasses timing pulleys, V-belt sheaves, idler pulleys, and associated taper-lock bushings. Timing pulleys, often specified by pitch (e.g., GT2, HTD, XL, L, H) and tooth count, engage with synchronous belts to maintain precise timing and eliminate slippage, critical in applications requiring exact positioning. V-belt sheaves are designed for classic V-belts, transmitting power through friction; they are characterized by their pitch diameter, groove profile (e.g., A, B, C, D, 3V, 5V, 8V), and number of grooves. Idler pulleys are used to guide belts, maintain tension, or route belt paths without transmitting power directly. Taper-lock bushings provide a secure, keyless shaft-to-hub connection for pulleys and sheaves, identified by their series number (e.g., 1008, 1210) and bore size. Common materials include aluminum, steel, cast iron, and various plastics (e.g., acetal, nylon), often with finishes like black oxide or anodization to enhance durability and corrosion resistance. Selection criteria include shaft diameter, belt type, desired speed ratio, torque requirements, and environmental conditions.

How to choose

When selecting pulleys and sheaves, first determine the belt type: synchronous (timing) or V-belt. For timing pulleys, specify the required pitch (e.g., GT2, HTD) and tooth count to achieve the desired speed ratio and center distance. For V-belt sheaves, identify the V-belt section (e.g., 3V, 5V) and the sheave's pitch diameter and number of grooves. Next, consider the shaft diameter and select an appropriate bore size or taper-lock bushing series. Evaluate material requirements based on strength, weight, and environmental factors. Finally, assess if an idler pulley is needed for belt tensioning or routing, specifying its diameter and bore.
