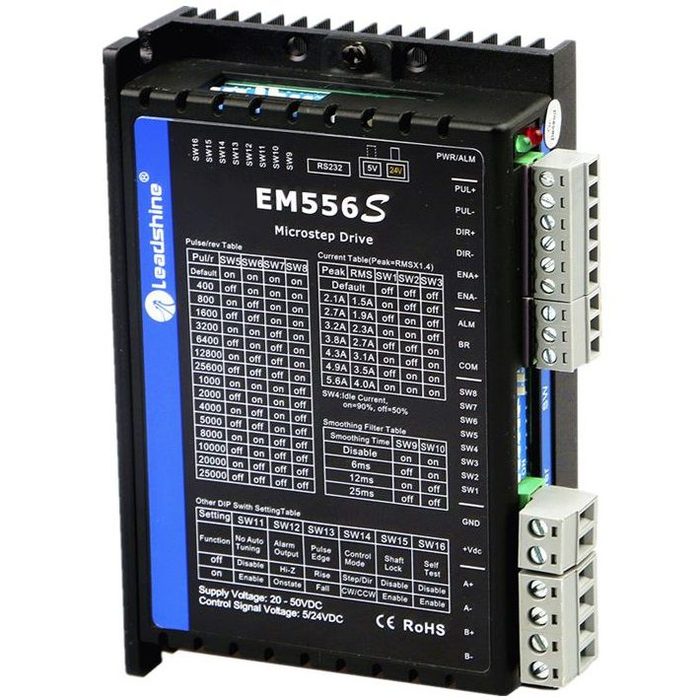

Microstepping Stepper Drive, 5.6A per phase, 2-phase output, 24-48 VDC

Leadshine MPN EM556S Stepper Motors

This Microstepping Stepper Drive provides 5.6A per phase output for 2-phase stepper motors, operating on 24-48 VDC. Its microstepping controller and features like anti-resonance ensure stable motor operation. It is typically used for position control applications, accepting step and direction or CW/CCW command signals.

Specifications

Additional Information	Optional 1.4.4-0409505-B3 programming cable available for software configuration
Amperage Rating	5.6A per phase
Command Signal(s)	step and direction, CW/CCW
Configuration	Rotary dial, dipswitches, jumpers or optional configuration software
Control Mode	Position
Controller Type	Microstepping
Current per phase	5.6 A
Discrete Input Type	Sinking/sourcing/line driver (differential)
Discrete Output Type	Sinking/sourcing
Drive Features	Self-test, anti-resonance (electronic damping), auto-tuning, 5/24 VDC input sele
Enclosure Type	Enclosed
IP Rating	IP20
Idle Current Reduction	Yes
Input Voltage	24-48 VDC
Mounting	Panel
Nominal Input Voltage	24-48 VDC
Number of Discrete Input Points	1
Number of Discrete Output Points	2
Number of Output Phases	2
Output Type	MOSFET, dual H-bridge and 4-quadrant output
Phases	2
Protection Type(s)	overvoltage, overcurrent, motor phase wiring error
Stall Detection	No
Stepper Drive Type	Open loop
Steps per Revolution	200 to 25600
Steps per revolution	200 to 25600
Temperature Rating	0 to 65 deg C
Tuning Mode	Pre-tuned or optional configuration software
Voltage Type	DC
Winding Type Control	Bipolar
