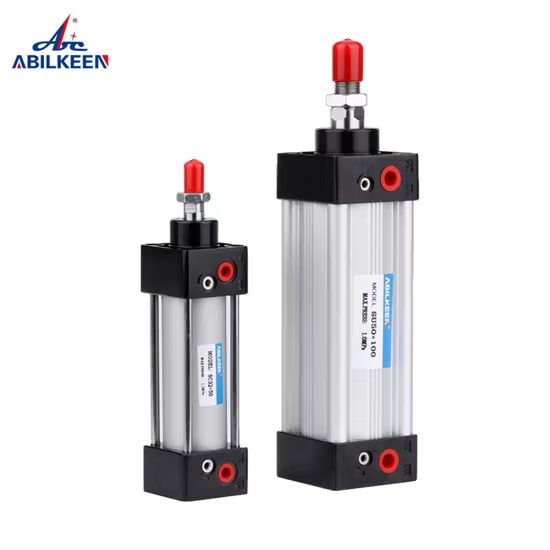

Compact Cylinder, 50mm Bore, 100mm Stroke

This is a compact cylinder with a 50 mm bore and 100 mm stroke. The 50 mm bore determines the force output, and the 100 mm stroke defines the travel distance. The 1/4 inch inlet size specifies the connection for compressed air, used in various automation applications.

Specifications

Bore	50 mm
Inlet Size	1/4 in
Stroke	100 mm

About pneumatic cylinders

Compact Cylinder, 50mm Bore, 100mm Stroke is listed under Pneumatic Cylinders — single and double-acting, compact, rodless and guided cylinders. Pneumatic cylinders convert compressed air energy into linear motion, providing force and displacement for various industrial automation tasks. They are broadly categorized by their acting mechanism: single-acting cylinders extend with air pressure and retract via spring force, while double-acting cylinders use air pressure for both extension and retraction.
