Gearboxes & Speed Reducers
Worm, planetary, helical and right-angle reducers.
Also searched as: speed reducerplanetary gearboxworm reducerright angle gearbox
-
Aluminium Bidirectional Rotation Worm Reducer
Rotation: Bidirectional
from $50.00Alibaba $50.00 -
-
-
Hand Cranked Worm Reducer Manual Adjustable Speed Reducers
Operation: ManualType: Worm
-
High Precision Planetary Gearbox Speed Reducer for Stepper Motor
Efficiency: 94-98%Torque: 15-10800 nm
-
High Precision Spur Gear Planetary Gearbox Reducer for Servo Stepper Motor
Gear Type: Spur GearMaximum Input Horsepower: 6000 rpmMotor Compatibility: Servo Stepper MotorRatio Range: 4-100
-
NMRV Worm Speed Reducer - 40:1 Gearbox
Gear Ratio: 40:1
-
NMRV90 NMRV110 NMRV130 NMRV150 Worm Reducer Right Angle
Angle: Right AngleType: Worm
-
PTO Speed Reducer Gearbox
Input Speed: 1000 rpmOutput Speed: 540 rpm
-
Planetary Gearbox Reducer
Ratio: 5~100:1Type: Planetary
from $160.00Alibaba $160.00 -
Rv030 Worm Reducer Low Noise Worm Transmission Gear Box Speed Reduction For Industrial Machines
Noise: Low
from $16.30Alibaba $16.30 -
-
SHD Series Harmonic Reducer Gear Box
Rated Torque: 2.1/3.2/4.2/4.8 Nm at 2000 rpmReduction Ratio: 30/50/80/100
-
WPA 135 155 175 Reducer 90 Degree Worm Drive Gearbox
Angle: 90 Degree
-
Worm Gear Reducer 60mm
Ratio: 20:1Size: 60 mm
-
-
-

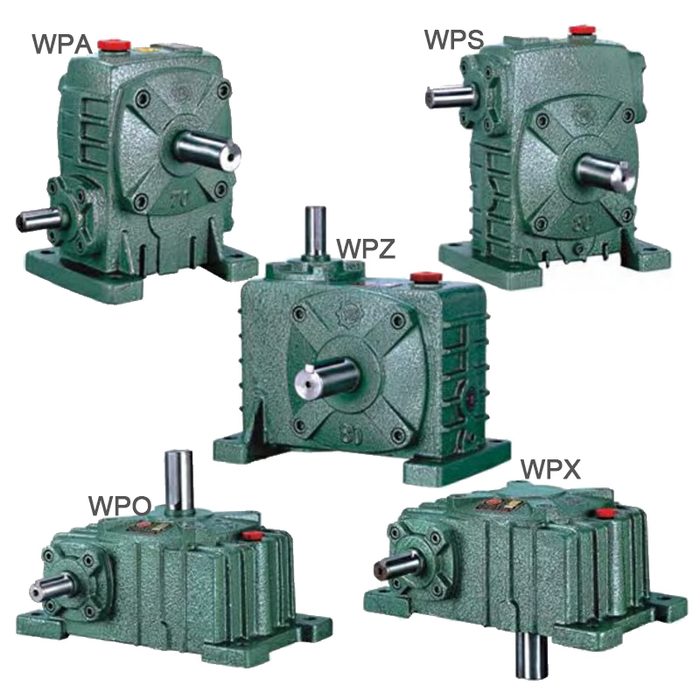

Worm Reducer Motor WPA WPS WPO WPX WPW 120 Spur Helical Transmission Gear
Type: Worm, Spur, Helical
-
Worm Reducer RV40 RV50 RV63 Ratio 25:1 35
Ratio: 25:1
from $24.23Alibaba $24.23 -
-
About gearboxes & speed reducers
Gearboxes and speed reducers are mechanical power transmission devices that modify torque and rotational speed between a prime mover and a driven load. They typically consist of a series of gears enclosed within a housing. Key types include worm, planetary, helical, and right-angle configurations. Worm gearboxes offer high reduction ratios in a compact footprint, often providing self-locking characteristics. Planetary gearboxes provide high torque density and coaxial input/output shafts. Helical gearboxes are known for their efficiency, quiet operation, and ability to handle high loads. Right-angle gearboxes, including bevel and worm types, reorient the drive axis by 90 degrees. Selection parameters include reduction ratio (e.g., 5:1 to 100:1), input and output torque ratings (Nm), input speed (RPM), backlash (arcmin), efficiency (%), and mounting orientation (e.g., foot-mounted, flange-mounted, shaft-mounted). Housing materials commonly include cast iron, aluminum alloys, and stainless steel, with gear materials typically being hardened alloy steels such as 42CrMo4 or 17CrNiMo6. Finishes vary from standard painted surfaces to specialized coatings for corrosive environments or food-grade applications.
How to choose
When selecting a gearbox, first define the required output torque and speed, and the available input speed from the motor. This determines the necessary reduction ratio and torque capacity. Second, consider the spatial constraints and desired shaft orientation to choose between inline (helical, planetary) or right-angle (worm, bevel) designs. Evaluate the application's duty cycle and shock loading to ensure the gearbox's service factor is adequate. Third, assess the required precision and backlash specifications; planetary gearboxes often offer lower backlash for precise positioning. Finally, review environmental factors such as temperature, potential for contaminants, and washdown requirements, which will dictate housing materials, sealing, and lubrication type.
