Worm Gear Speed Reducer, 175 rpm, 10:1 Ratio, 1.97" Cd, 56C, Universal Hollow Bore

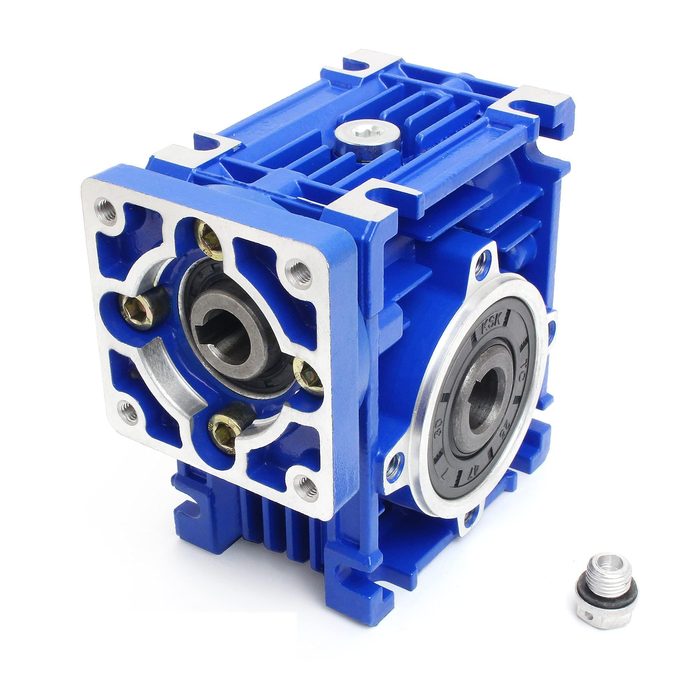

This is a worm gear speed reducer with a 10:1 ratio, 175 rpm output, 1.97" worm center distance, and a 56C frame with a 1" universal hollow bore. The 10:1 ratio provides speed reduction from a 1750 rpm input to 175 rpm output. The hollow bore allows for direct mounting onto a shaft, typically used in right-angle drive applications requiring moderate speed reduction.

Specifications

Bore Diameter	1 inch
Bore Type	Hollow
Frame Size	56C
Input Speed	1750 rpm
Output Speed	175 rpm
Ratio	10:1
Shaft Orientation	Right Angle
Worm Center Distance	1.97 inch

About gearboxes & speed reducers

Worm Gear Speed Reducer, 175 rpm, 10:1 Ratio, 1.97" Cd, 56C, Universal Hollow Bore is listed under Gearboxes & Speed Reducers — worm, planetary, helical and right-angle reducers. Gearboxes and speed reducers are mechanical power transmission devices that modify torque and rotational speed between a prime mover and a driven load. They typically consist of a series of gears enclosed within a housing.
