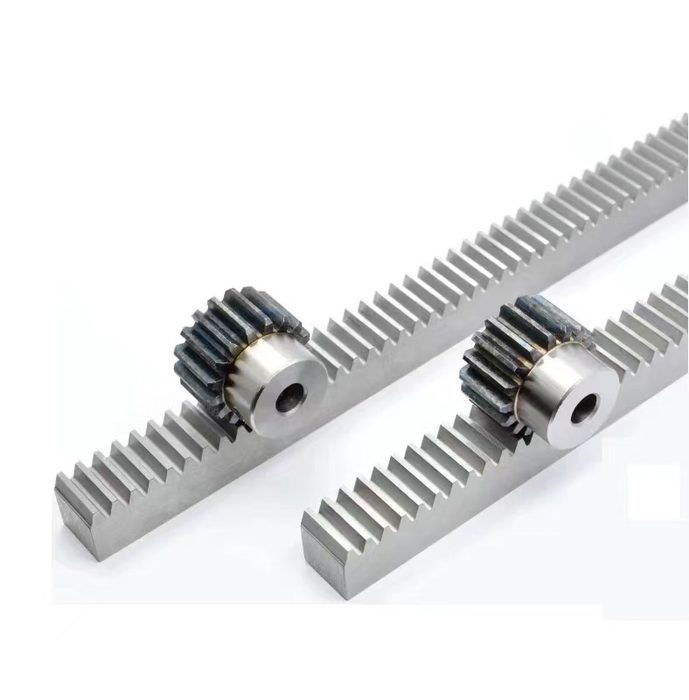

Square Gear Rack

This Square Gear Rack has a face width of 3/16 inch and a pressure angle of 20 degrees. Its square shape is a defining characteristic for mounting and application. Square gear racks are used in linear motion systems, often in conjunction with a pinion gear.

Specifications

Face Width	3/16"
Pressure Angle	20 °
Shape	Square

About gears

Square Gear Rack is listed under Gears — spur, helical, bevel, worm and internal gears plus racks. Gears transmit rotary motion and torque between shafts, or convert rotary motion into linear motion. This category encompasses a range of gear types, including spur, helical, bevel, worm, and internal gears, as well as racks.
