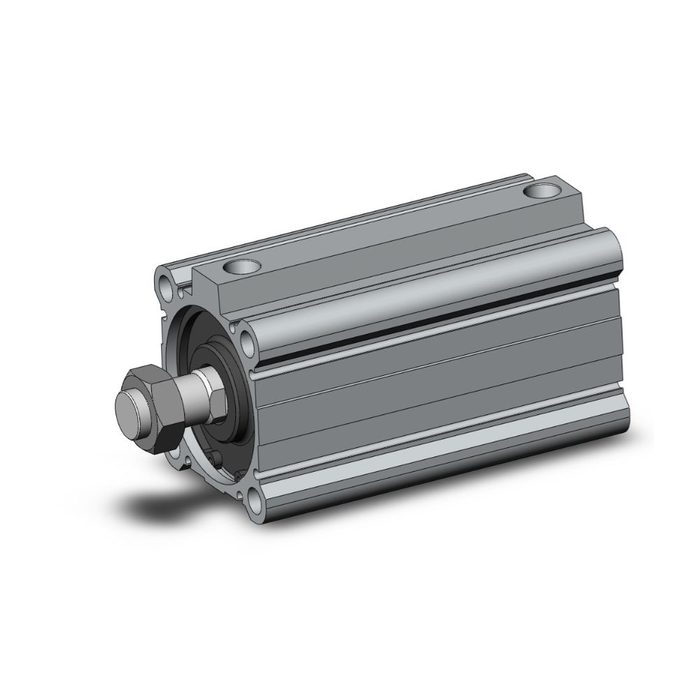

Compact Cylinder, 63mm Bore, 100mm Stroke

SMC MPN CDQ2A63 Aluminum Pneumatic Cylinders

This is a compact double-acting cylinder with a 63 mm bore and 100 mm stroke. The double-acting mechanism provides force in both directions. This compact cylinder is used in applications requiring moderate force and travel within a space-efficient design.

Specifications

Action	Double Acting
Bore	63 mm
Cylinder Type	Compact
Stroke	100 mm

About pneumatic cylinders

Compact Cylinder, 63mm Bore, 100mm Stroke is listed under Pneumatic Cylinders — single and double-acting, compact, rodless and guided cylinders. Pneumatic cylinders convert compressed air energy into linear motion, providing force and displacement for various industrial automation tasks. They are broadly categorized by their acting mechanism: single-acting cylinders extend with air pressure and retract via spring force, while double-acting cylinders use air pressure for both extension and retraction.
