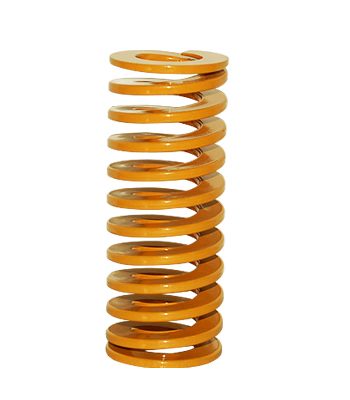

JIS Extra Light Duty Rectangular Die Springs

This is a JIS extra light duty rectangular die spring. Its rectangular wire cross-section and extra light duty rating indicate it is designed for applications requiring minimal force. It is typically used in dies and molds for light compression tasks.

Specifications

Duty	Extra Light
Shape	Rectangular
Standard	JIS

About springs

JIS Extra Light Duty Rectangular Die Springs is listed under Springs — compression, extension, torsion, die and constant-force springs. Springs are mechanical devices designed to store and release elastic energy, typically in response to a compressive, tensile, or torsional force. The primary types include compression springs, which resist compressive loads along their axis; extension springs, which resist tensile loads and often feature hooks or loops at their ends; torsion springs, which apply torque or store rotational energy;
