Acme Screw

Duff-Norton MPN 100ASA025R-36 Steel Ball Screws & Lead Screws

This Acme screw has a diameter of 1.00 inch, a lead of 0.250 inch, a length of 36 inches, and one start. These specifications define its size, thread pitch, and linear travel. It is typically used for precise linear actuation and power transmission.

Specifications

Diameter	1.00 in
Lead	0.250 in
Length	36 in
Number of Starts	1

About ball screws & lead screws

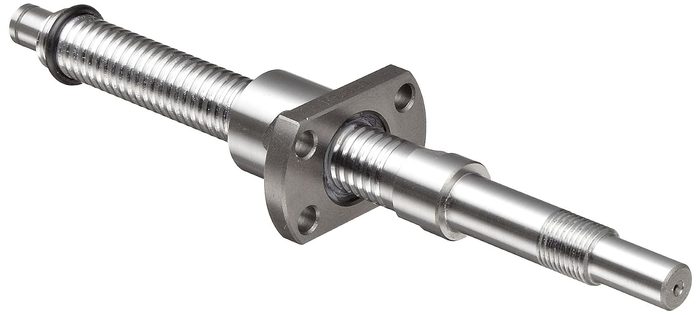

Acme Screw is listed under Ball Screws & Lead Screws — rolled and ground ball screws, acme lead screws and nuts. Ball screws and lead screws convert rotary motion into linear motion, or vice-versa, with high precision and efficiency. Ball screws utilize recirculating ball bearings between the screw shaft and the nut, providing low friction, high efficiency (typically >90%), and minimal backlash.
