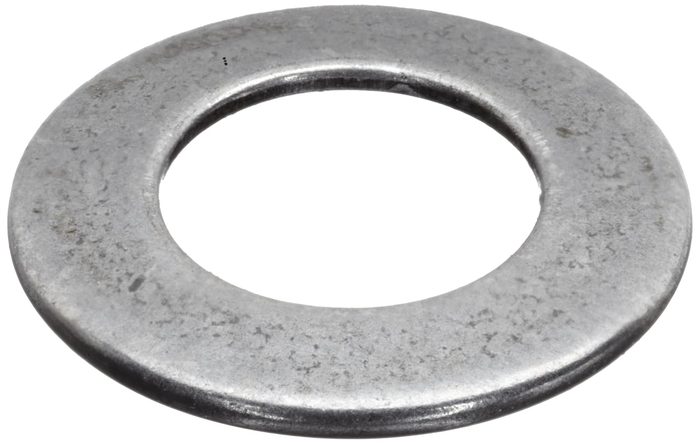

Disc Spring, Belleville

Zoro Select MPN 1NEB6 302 SS Washers

This Disc Spring, Belleville has a Max Outside Diameter of 0.500 In and a Min Inside Diameter of 0.255 In. It provides a Flat Load of 70 Lbs and a Load of 47 Lbs with a Deflection @ Load of 0.008 In. This washer is typically used in applications requiring a small, precise spring force.

Specifications

Deflection @ Load	0.008 In
Flat Load	70 Lbs
Load	47 Lbs
Max Outside Diameter	0.500 In
Min Inside Diameter	0.255 In
Overall Height	0.034 In
Size	0.25
Thickness	0.018 In

About washers

Disc Spring, Belleville is listed under Washers — flat, split lock, tooth, belleville and structural washers. Washers are thin, flat plates with a central hole, primarily used to distribute the load of a threaded fastener, prevent loosening, or provide spacing. Flat washers, such as those conforming to ASME B18.21.1 or DIN 125, increase the bearing surface area, reducing the risk of material deformation under the fastener head or nut.
