Compressed Asbestos Gasket Sheet

Compressed Asbestos Gasket Sheet

Hengshui Yingli Import and Export Co., Ltd. Asbestos fiber, rubber Rubber & Foam Stock

This is a compressed asbestos gasket sheet, model XB200, with a density of 1.95g/cm3 and compressibility of 7%-17%. It is designed for static sealing applications with an instant pressure rating of 12MPa. This material is suitable for use with non-oil or non-acid media.

Specifications

Ageing Coefficient≥0.9
BalanceBalanced
Compressibility7%-17%
Density1.95g/cm3
HS Code4016931000
Instant Pressure12MPa
Loss on Ignition28%
MediaNon Oil or Acid
Model NO.XB200
OriginChina, Hengshui
PerformanceTemperature
PressureHigh Pressure Mechanical Seals
Recovery45%
SealabilityHigh
Specification1500mm x 2000mm
SpeedHigh-Speed Mechanical Seal
StandardStandard
StructureFlat
TemperatureHigh Temperature Mechanical Seal
Tensile Strength18MPa
TrademarkTENSION
Transport PackagePallet or Rolls
TypeSealing Material
Working Pressure6MPa
Working Temperature450℃

About rubber & foam stock

Compressed Asbestos Gasket Sheet is listed under Rubber & Foam Stock — neoprene, epdm, silicone, cork and closed-cell foam sheet. Rubber and foam stock encompasses a range of sheet materials utilized for sealing, cushioning, insulation, and vibration dampening applications. Common types include neoprene, EPDM (ethylene propylene diene monomer), silicone, cork, and closed-cell foam.

Compare this against other rubber & foam stock, or search the full index for equivalents from other manufacturers.

Where to buy

1 supplier carry this part. Prices are last-seen and change without notice.

Others in rubber & foam stock

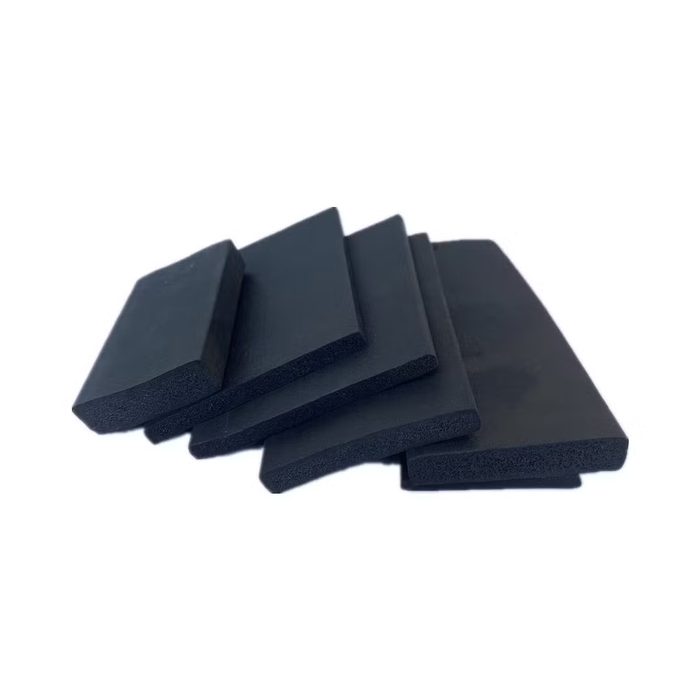

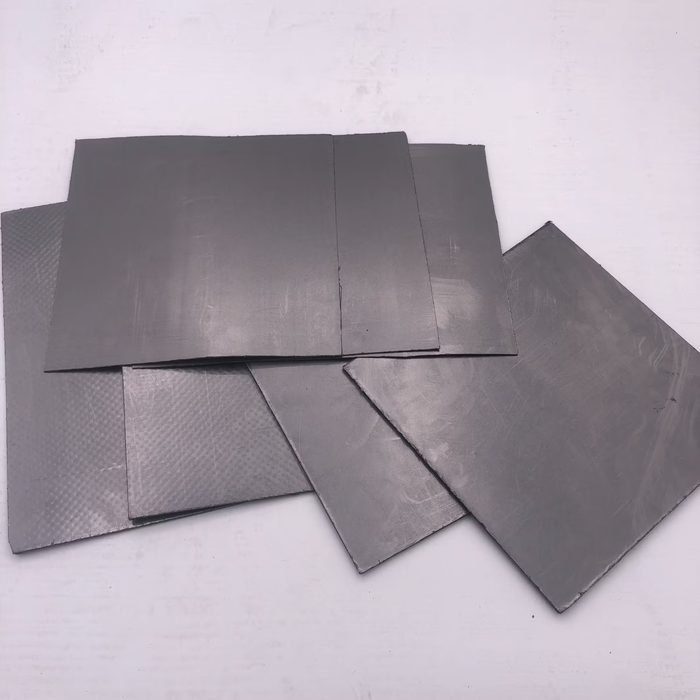

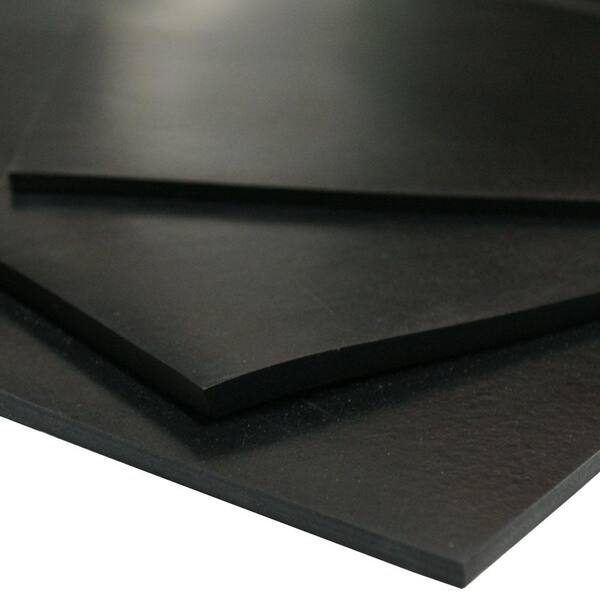

Gasket Material Sheet Gasket Material Sheet 1 supplier Aramid Fiber/Buna-N Gasket Sheet 60" W x 5 ft L x 1/32" Thk Green Aramid Fiber/Buna-N Gasket Sheet 60" W x 5 ft L x 1/32" Thk Green 1 supplier Aramid/Buna-N Gasket Sheet - 1/64" Thick x 15" Wide Aramid/Buna-N Gasket Sheet - 1/64" Thick x 15" Wide 1 supplier Aramid/Buna-N Gasket Sheet, 1/64" Thick x 60" Wide Aramid/Buna-N Gasket Sheet, 1/64" Thick x 60" Wide 1 supplier EPDM Rubber Plate EPDM Rubber Plate 1 supplier Soft Foam Rubber Tube Soft Foam Rubber Tube 1 supplier Ultra Soft Silicone Sheet, Industrial Grade, 1-20mm Thick, Low Hardness Ultra Soft Silicone Sheet, Industrial Grade, 1-20mm Thick, Low… 1 supplier Neoprene Sheet - 70A - Smooth Finish - No Backing Neoprene Sheet - 70A - Smooth Finish - No Backing Rubber-Cal 1 supplier
