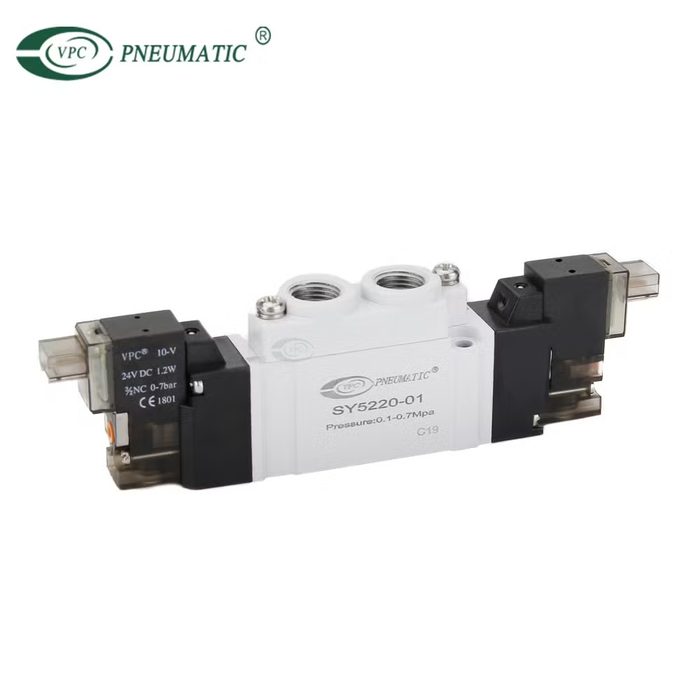

2 Position 5 Way Air Valve

This is a 2-position, 5-way air valve with a 1/4in port size. It operates within 0.15-0.8 MPa pressure and 0-60 °C temperature, with a maximum frequency of 5 times/sec. This valve is used to direct air flow in pneumatic systems, offering two distinct flow paths.

Specifications

Effective Sectional Area	16mm² (Cv=0.89)
Maximum Operating Frequency	5 times / sec
Number of Positions	2
Number of Ways	5
Operating Temperature Range	0~60 °C
Port Size	1/4in
Use Pressure	0.15-0.8 MPa

About pneumatic valves

2 Position 5 Way Air Valve is listed under Pneumatic Valves — solenoid, manual, check, flow-control and manifold valves. Pneumatic valves regulate the flow and pressure of compressed air within a system, controlling actuators, cylinders, and other pneumatic components. Key types include solenoid valves, which use an electrical signal to actuate a spool or poppet; manual valves, operated by levers, pushbuttons, or rotary mechanisms; check valves, which permit flow in one direction only; and flow-control valves, desig
